Spiralseparator is our company's concentrating experienced scientificproduct, which is the best concentrating equipment, especially forconcentrating of the sand ore of the seashare, riverside, sand, rill isbetter.

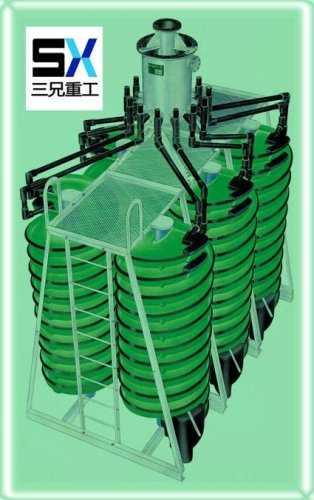

Close sight of spiral of spiral separator:
Spiral separator technical parameter:
Model | LL-2000 | LL-1500 | LL-1200 | LL-900 | LL-600 |
Diameter(mm) | 2000 | 1500 | 1200 | 900 | 600 |
Pitch(mm) | 1200/1500 | 540/720 | 540/720/900 | 405/540/675 | 270/360/450 |
Pitch Ratio | 0.6/0.75 | 0.45/0.6 /0.75 | 0.45/0.6 /0.75 | 0.45/0.6 /0.75 | 0.45/0.6 /0.75 |
Slope(°) | 9 | 9 | 9 | 9 | 9 |
Head | 4 | 4 | 4 | 4 | 3 |
Input Size(mm) | 0.04-2 | 0.02-2 | 0.03-0.3 | 0.03-0.3 | 0.02-0.2 |
Input Thickness(%) | 25-55 | 25-55 | 25-55 | 25-55 | 25-55 |
Capacity(t/h) | 12-30 | 6-12 | 4-6 | 2-3 | 0.8-12 |
Dimension (mm) | 2100×2100 ×5600 | 1580×1580 ×5230 | 1360×1360 ×5230 | 1100×1100 ×4000 | 700×700 ×2600 |
Weight(kg) | 2000 | 1100 | 600 | 400 | 150 |
Spiral separator customers field:
Spiralseparator is made of the chlorine plastic, the advantage is light,moisture proof, antirust, corrosion proof, properly suitable for thechanging of th feeding size and chrome, granularity, grade, no noisy.
Spiral separator customers field:
Mineral processing? Solutions are here!
