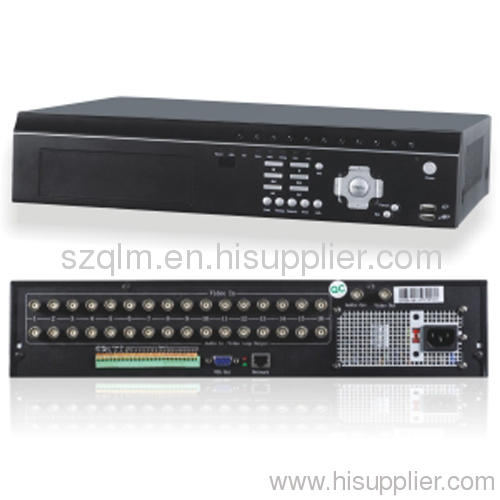

Product Name:stand alone dvr
Model:QLM-DVR87
FEATURES:
• Stand-Alone DVR, H.264 Compression
• High quality video Display : NTSC (720x480),
PAL (704x576) real time display
• Multiple Recording/ Search Categories:
Date/Time, Event, Manual, Schedule,alarm, motion detection
• Real time recording support:
120/240/480 Fps for NTSC at CIF image (100/200/400 Fps for PAL)
• 4ch Video recording at the same time
• Pentaplex: Live, Record, Playback, Back-up and Network at the same time
• Backup: CD-RW (Option: DVD-RW), USB 2.0 and NET backup supported
• PTZ camera control in local and remote area
• 4 channel,8 channel,16 channel options.
• 4 channel,8 channel,16 channel options.
Network Viewer:
• Static, Dynamic IP and DDNS , Support Internet Explorer and special client software
• Remote Live Monitoring, file searching, Backup, Playback and PTZ camera control
• Remote Configuration, Firmware Upgrade and Event (Alarm, Motion, Email) Notification
• Mobile monitoring (3G), Iphone
Accessories:
Accessories:
1. Audio input
2. Video input
3. RS-485
4. Alarm output
5. Alarm input
6. VGA output
7. Network
8. Audio output
9. Video output
10. Power Supply
Specifications:
Specifications:
Project: | Specification and parameters | ||
Channel: | 16 ch | 8 ch | 4 ch |
Video signal: | PAL system (25 frames / sec) NTSC system (30 frames / sec) | ||
Video input: | BNC(1.0Vp-p/75Ω)×16 | BNC(1.0Vp-p/75Ω)×8 | BNC(1.0Vp-p/75Ω)×4 |
Video output: | BNC connector × 1, VGA × 1 | ||
Audio input: | 16 ch | 8 ch | 4 ch |
Audio output: | 1 ch | 1 ch | 1 ch |
Alarm Input: | 16 ch (switching capacity) | 8 ch (switching capacity) | 4 ch (switching capacity) |
Alarm output: | 4 ch (switching capacity) | 4 ch (switching capacity) | 4 ch (switching capacity)) |
Playback resolution: | 4CH D1 + 12CH CIF | 4CH D1 + 4CH CIF | FULL D1 |
Alarm: | Alarm sensor input; video dynamic detecting alarm; video loss alarm; disk full alarm | ||
Network mode: | 10/100M adaptive, support LAN, WAN and ADSL dynamic IP networking | ||
Monitoring methods: | IE monitoring, phone monitoring, E-mail function | ||
Control: | support for the mouse, remote control, PTZ, camera control | ||
Backup mode: | support USB, CD-RW, DVDRW and Network Backup | ||
Resolution: | PLA system: Display Resolution: 720 × 576 compressed resolution: 352 × 288 NTSC system: Display Resolution: 720 × 480 compressed resolution: 352 × 240 | ||
Compression Standard: | H.264 | ||
Hard disk: | four large hard drives 2000G | ||
Security features: | two password management | ||
Power supply: | 220V(±10%)/50Hz,180W | ||
Power: | 12W (without hard drive) | 8W(without hard drive) | 8W (without hard drive) |
Temperature: | Operating temperature: +5 ℃ ~ +50 ℃; humidity: <90% Storage temperature: -20 ℃ ~ +70 ℃; humidity: <95% | ||
Dimensions: | 432×96×375mm(W × H × D) | ||
Weight: | Net weight: 6Kg Gross Weight 7.5kg | ||
