Operations needed every time is displayed on the screen as well as the state of the door, the state of water tanks, temperature, pressure, ect.

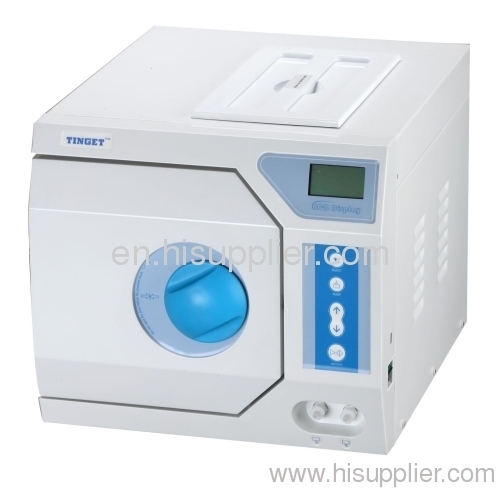

The shape of its door is different from smaller-sized models from series A.
Following is the graph of working cycle with Class N system:
Application Area:
Dental Clinics, Human Hospitals, Laboratory, Veterinary, Beauty Salon, Tattoo.
Dental Clinics, Human Hospitals, Laboratory, Veterinary, Beauty Salon, Tattoo.
Features:
.Class N autoclave, without vacuum pump.
.LCD display.
.A built-in independent steam generator, making the sterilization fast and completely.
.Most of the main parts for TINGET autoclaves are imported from global famous company.
.Sterilization temperature: 121℃/1.1bar, 134℃/2.1bar.
.Open-type water storage tank which is very easy for filling and cleaning.
.Automatic water filling and draining.
Safety:
.Door protection locking system , prevents the cycle from starting unless the door is properly locked, and also prevents the door from opening if there is pressure in the chamber.
.Pressure safety valves prevent over pressurization in chamber and generator.
.A safety fuses prevent over heating in the chamber and generator.
.Able to detect and identify the exact cause of any problem by warning and showing a specific error code.
.Water level switch in the water tank, controlling the max and min water level.
Documentation:
.Have printer port, able to be connected TINGET printer to print the sterilization records for each cycle.
Program:8 programs
| Program | Temperature(℃) | Press(Par) | Sterilization Time(min) | Total Time(min) |
| Solid | 134 | 2.1 | 4 | 18-30 |
| Solid | 121 | 1.1 | 20 | 30-45 |
| Wrapped | 134 | 2.1 | 6 | 30-40 |
| Wrapped | 121 | 1.1 | 20 | 35-50 |
| Liquid | 134 | 2.1 | 8 | 45-65 |
| Liquid | 121 | 1.1 | 30 | 50-75 |
| Prion | 134 | 2.1 | 18 | 45-75 |
| Plastic | 105 | 0.2 | 30 | 50-65 |
