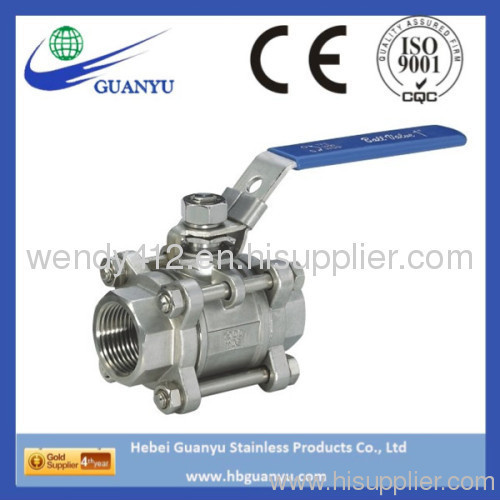

3PC Thread Stainless steel Ball Valve (BT-3F Full Bore 1000PSI)

Share |

3PC Thread Stainless steel Ball Valve (BT-3F Full Bore 1000PSI)

Price:	3.65~175.86 USD
Trade Term:	FOB
Payment Terms:	T/T,L/C,D/P,WU

HiSupplier Escrow

Add to My Favorites

Trade on HiSupplier, Worry Free Guarantee

•Trading safety, secure your money, lower the risk, protect both buyers and suppliers

•HiSupplier is a Chinese multinational company in U.S, it helps to coordination and order landing.

More ›

Product Details
Company Profile
Product Reviews

Basic Info.

Power: Manual
Standard or Nonstandard: Standard
Pressure: Medium Pressure
Structure: Ball
Material: Stainless Steel
Temperature of Media: Medium Temperature
Media: Oil
Brand Name: GY
Material: AISI304 316; CF8 CF8M
Shape: Full Bore
Sizes: 1/4"-4"
Working Pressure: PN64 1000PSI
Working Medium: Water Oil Gas
Connection: Female Threaded
Thread Types: NPT BSP BSPT DIN2999
Option: Locking Device
Handle: Lever handle or butterfly handle
Certification: ISO9001:2008 CE
Model No.: BT-3F
Place of Origin: Hebei
Min.Order: 10 Piece/Pieces
Means of Transport: Ocean, Air, Land

Supply Capacity

Production Capacity: 100000
Packing:Each in bubble bag, then packed in cartons on pallets, or as your request.
Delivery Date: 14-45 days

3PC Thread Stainless steel Ball Valve (BT-3F Full Bore 1000PSI)

CE & ISO9001 Approved

Ball Valve Standard

Design: ANSI B 16.34

Testing: API 598

Connecting: NPT/BSP/BSPT/DIN2999 thread (F/F)

Power: Manual(lever handle)

Options: Locking device

Body Processing: Investment casting

Application
For general chemical and industrial services

Design for in-line reparable and simple maintenance
Working Pressure: 6.3MPa, 1000PSI, PN64

Temperature: Normal temperature (-26~180 degree)
Applicable Medium: Water, Oil, Gas
Body Material: CF8, CF8M, CF3M
Dimension: 1/4", 3/8", 1/2", 3/4", 1"1 1/2'', 2'', 2 1/2'', 3'', 4''

Features & Benefits

1) Investment casting body

2) Blow-out proof stem and safe prossure-reducing hole

3) Compact assembly

4) Locking device

5) Stainless steel material, highly corrosion resistance

Materials of main parts

Body: CF8M

BALL: CF8M

Gasket: RPTFE

Cap: CF8M

Ball Seat: RPTFE

Stem: 316

Thurst Washer: RPTFE

Stem Packing: RPTFE

Gland Nut: 316

Handle: 304

Spring Washer: 304

Nut: 304

Handle Cover: Plastic
