Heat transfer powder coating

Price: 2.0~3.0 USD
Trade Term: FOB
Payment Terms: T/T,L/C
skype
Trade on HiSupplier, Worry Free Guarantee
Trading safety, secure your money, lower the risk, protect both buyers and suppliers
HiSupplier is a Chinese multinational company in U.S, it helps to coordination and order landing.
More ›
  • Product Details
  • Company Profile
  • Product Reviews
Basic Info.
  • Brand Name: colo
  • Powder painting: Polyester
  • material: polyester resins
  • color: according to RAL
  • Test Report: SGS,RoHS,SVHC
  • sample: can supply for testing quality
  • packing: 25kgs/box
  • used: outoor type
  • suitable: metal product
  • type: themosetting
  • Storage: Store below 35 ℃, ventilated, dry, clean indoor
  • Place of Origin: Zhejiang
  • Min.Order: 200 Kilogram
  • Means of Transport: Ocean, Air
Supply Capacity
  • Production Capacity: 2ton/day
  • Packing:bag with box
  • Delivery Date: 2-10days

Heat transfer printing powder coating


Heat transfer powder coating

The features of the thermal transfer powder coating:
Products of different gloss are available, namely, high gloss (above 80), semi gloss(50-80), flat gloss (20-50)and no gloss (below 20). The gloss can be adjusted according to the customersdemand.

Physical properties of the powder
Density :1.4-1.7 g/cm3
Granularity distribution100 below 100(It can be adapted to the specific demand of coating)

Curing Condition
Depending on the types of different products. For detailed information, please check the instruction book attached to our products.


Coating performance
Testing items
Standards and methods
Inspecting index
Impact strength
GB/T1732-1993
50/
Adhesion
GB/T9286-1998
Grade 0
Bending resistance
GB/T6742-1986
2
Pencil hardness
GB/T6739-1996
1H-2H
Slat mist resistance
GB/T1771-1991
500h
Heat moist resistance
GB/T1740-1979
1000h
Heat resistance
110/24h(all color)
Good gloss retention,
Aberration≤0.3-0.4
Notations 1.The tests above used the cold rolling steel plate of 0.8mm thick with preceding standard treatment. The thickness of the coating layer is 60-80um.
2.The above performance index may slightly vary with the variation of the product types and artistic effects.
·
·
Average coating rate
A.      Smooth Surface:
6-12/KG, film thickness 60μm (calculated according to 100 consuming of powder coating)
B.     Texture Surface:
5-7/KG,film thickness is about 80-120μm

Heat transfer powder coating

Transfer printing wood grain powder coating

Heat transfer powder coating

Heat transfer powder coating

Heat transfer powder coating

Description
  • Sublimation powder coating is also called Heat Transfer Powder Coating because of the process of heat transfer printing.This process is a sublimation process,which is a phisycal-chemical transition of a pattern from transfer paper or film to a substrate which is pre-coated with a special powder designed to be as the base color of this sublimation.

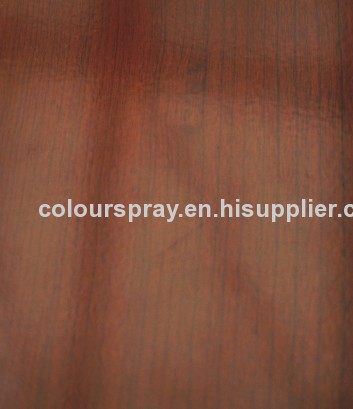

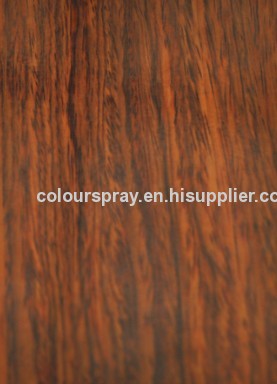

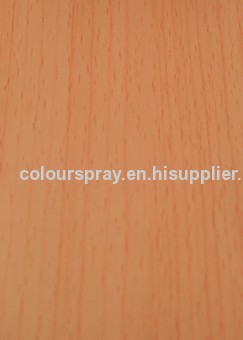

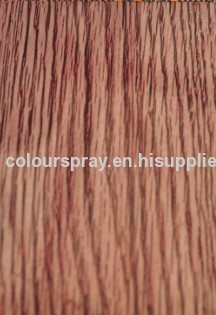

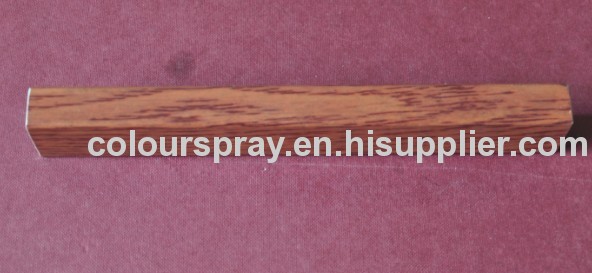

  • Through this sublimation process countless effects and patterns such as woodgrain, marble, granite, fancies, pictures can be transferred on substrate surfaces.
  • This series is available in a variety of color, gloss, finishes and shapes.
  • The coating is flexible and non-sticky paper, so that the prefabricated steel could be coated with this products before post-forming.
  • To learn more about this application process,please refer to Heat Transfer Process.
Powder Characteristic
  • Chemistry: Epoxy Polyester/Polyester / Polyurethane
  • Particle size: Suitable for electrostatic spraying
  • Specific gravity: 1.2-1.7g/cm3 up to colors
  • Curing schedule(object temp.): 180°C/10-15minutes;200°C/6-10minutes;
  • Storage: Dry ventilation conditions below 30°C
  • Shelf life: 12months
Application Area
  • Furniture
  • General Industry
  • Architecture Construction




Preparation of wood powder coating process
Heat transfer powder coating



First certain colors sprayed onto the workpiece heating the powder so that the powder is completely cured, the workpiece down to room temperature after the adhesive paste transfer paper and then into the oven bake 165 degrees 20 minutes (due to different workpiece temperature and heat transfer at different times), then the solution out of the transfer paper, washing drying, spray transparent paint.
