features:
1. Support for bluetooth hands-free telephone,convenient and safe on the phone
2. Have CVC noise processing,has the wind noise suppression function,full duplex call technology.
3. High quality A2DP streaming
4. Support two cell phone connection bluetooth,the power supply after opening,automatic back to even,automatic into the matching condition
5. Support USB/TF Card MP3 format music playing
6. PLAY music,long press PLAY button transmitter 4 seconds can realize not code replay function
7. With multi-function remote control,can realize number song selection and choose frequency
Technical parameters
Rated voltage: 12V
Limit voltage: 9 - 26V
Power: 1W
Work Temperature: -20 ~ 50C
SNR:60dB
Frequency response: 20Hz - 15Khz
Bluetooth version: V2.1+EDR
Bluetooth audio process with A2DP function
Bluetooth transmission distance: 10-15m
FM emission frequency: 87.5 - 108MHz
Package includes

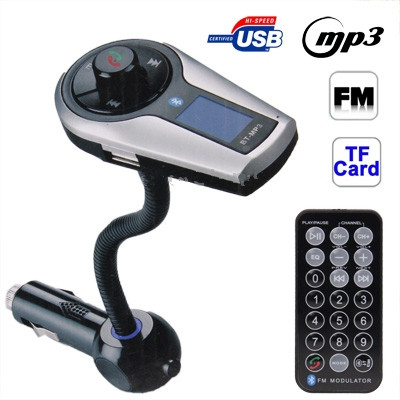

@1 x Bluetooth car mp3 FM modulator
@1 x Audio cable
@1 x Remote controller
@1 x Manual
Instructions on how to use your FM Transmitter
1. Insert this FM Transmitter into your Car lighter slot
2. Turn on your radio to a desired FM frequency,then match the same frequency on to the FM transmitter by using the buttons on the unit or on the remote control
3. Plug your compatible TF Card into the Card Port or USB Flash Drive into the USB Port of your FM Transmitter,or connect your other compatible Drive using the Audio Cable
4. For other compatible music devices or your mp3/mp4 players,use the supplied audio line cable to connect from the other device?s Line Out to the FM Transmitter Line In. When using an external device,all functions will be controlled by the external devise,neither the transmitter nor its remote control. Enjoy!
Using Bluetooth hands-free
1. Pairing,FM Transmitters on power enter pairing state,open the cellular phone bluetooth mode,set to the active and search to BT Carkit device name displayed on the after,click on BT Carket device name to connect the equipment,Mobile phone will be asked to enter the password 0000(some phones not need a password,connect directly); some phones can tip is authorized equipment automatic connection,click is complete paired to the phone will tip bluetooth already connected.
Note: for bluetooth different,please in 30 seconds boot on the complete search,if in 30 seconds can?t search to bluetooth equipment,need to restart,once again,to be automatic into the matching condition
2. If the mobile has been aligned with this hands-free player,and the mobile has been set under allowable automatic connection for bluetooth,this hand-free player can be connected with.
3. With A2DP function mobile phones can be in even after the bluetooth,though the car hands-free car audio broadcast in mobile phone music
4. Bluetooth can also connect with two cell phones,but the same service can only a cell phone use.such as A mobile phone are using A2DP function, B mobile phone will not play
5. Priority level: the priority level is shown as follows when different functions are under working
