Standard Microscope Slide
Our microscope slides are manufactured from high quality glass, pre-cleaned,the dimensions of which have been standardized to millimeters. All of our slides are produced with reliability and quality which are considered to be the best.
Product Class
1.Economy microscope slide
2.Super grade microscope slide
Product Information
1. The surface of our slides are tipically flat and optically clear.
2. We have 4 types of edges to match the various usage: a. Cut (unground) edges b. Smooth and ground edges with 90(45) degree shapes. c.Beveled edges. d.Polished edges
3. Our standard slides have 22 or 20mm frosted at one end on single side or both sides for easy marking.
4. Our concave slides have one or two circular recesses which have a depth of approx.0.6- 0.8mm and a diameter of approx. 15-18mm. They are excellent for viewing and using.
5. Color microscope slide with a printed area (22mm) on one side or both sides on one end.
Material(grade number) and Component
Soda-lime glass
SiO2 | 70~73% |
Na2O | 13~15% |
CaO | 7~12% |
MgO | 1~4.5% |
Al2O3 | 1~2% |
SO3 | 0~0.3% |
Fe2O3 | 0.05~0.2% |
Standard Packing

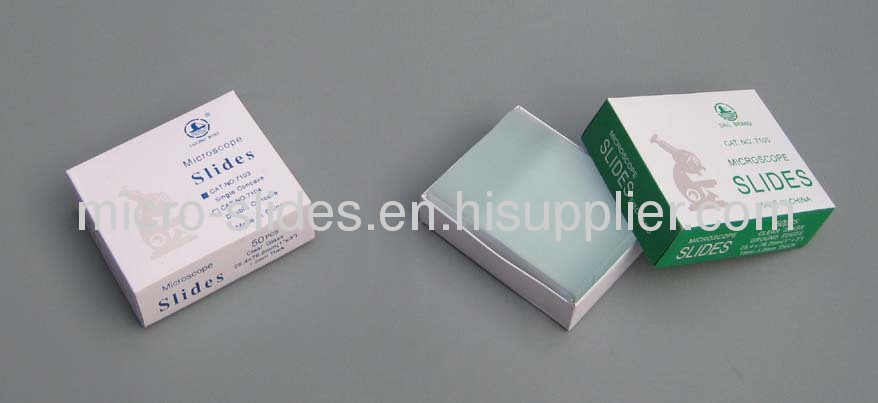

1. 50 slides or 72 slides per box
2. Individually tissue paper interleaved
3. One desiccant packed in each box
4. Each box in a closely vacuumed polypropylene bag
Storing
1. Slides are ready to use as received.
2. You'd better store them in a storage box which provides the utmost protection.
3. Don't keep them for too long and an aging process may affect the quality of the slides.
4. Please use them within the expiration time ( 12 months according to storing condition)
5. Long exposure to solvents will cause the slide to warp..
| Cat No. | Specification | Standard (mm) | Thickness (mm) | Packing | |
| Box /Ctn | Pieces /Box | ||||
| 7101 | Plain Slide,Ground Edges | 1" x 3" | 1.0 - 1.2 | 50 | 50 (72) |
| 7102 | Plain Slide, Unground Edges | 1" x 3" | 1.0 - 1.2 | 50 | 50 (72) |
| 7103 | Single concave, Ground edges | 1" x 3" | 1.0 - 1.2 | 50 | 50 (72) |
| 7104 | Double Concaves,Ground Edges | 1" x 3" | 1.0 - 1.2 | 50 | 50 (72) |
| 7105 | Single end frosted on one side of surface, Ground edges | 1" x 3" | 1.0 - 1.2 | 50 | 50 (72) |
| 7105-1 | Single end frosted on one side of surface, Unground edges | 1" x 3" | 1.0 - 1.2 | 50 | 50 (72) |
| 7106 | Double ends frosted on one side of surface, Ground edges | 1" x 3" | 1.0 - 1.2 | 50 | 50 (72) |
| 7107 | Single end frosted on both sides of surface, Ground edges | 1" x 3" | 1.0 - 1.2 | 50 | 50 (72) |
| 7107-1 | Single end frosted on both sides of surface, Unground edges | 1" x 3" | 1.0 - 1.2 | 50 | 50 (72) |
| 7108 | Double ends frosted on both sides of surface, Ground edges | 1" x 3" | 1.0 - 1.2 | 50 | 50 (72) |
| 7109 | Single end color frosted,Ground edges | 1" x 3" | 1.0 - 1.2 | 50 | 50 (72) |
| 7110 | Frosted on one side surface | 1" x 3" | 1.0 - 1.2 | 50 | 50 (72) |
| 7111 | Frosted on both sides surface | 1" x 3" | 1.0 - 1.2 | 50 | 50 (72) |
