Level Wound Coil

Model No.:	CT-001
Place of Origin:	Zhejiang

Payment & Shipping Terms:

Unit Price: US$1.0~100000.0

Payment Term: L/C or T/T

MOQ: 1 Metric Ton

Means of Transport: by sea

Supply Capacity:

Production Capacity: 200 MT/Month

Packing: Shrink wrapped in cardboard

Delivery Date: 20 days after receipt deposit

Specifications(For reference only)

LWC(Level Wound Coil)
DESCRIPTION:

Standard Complied: ASTM B-280, EN-12735, JISH-3300, GB/T-17791
Alloy no.: C12200, C1220,TP2
Temper: soft drawn or light soft drawn
Coil Wt.: 100kg - 900 kg

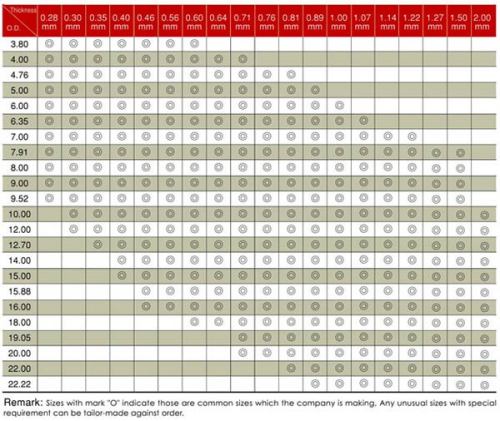

Main Specification: Outer Diameter: 4mm - 15.88mm, Wall Thickness: 0.28mm - 1.27mm
Port of Shipment:NINGBO CHINA
Payment: T/T, L/C
Minimum Order :1 Metric Ton
Supply Ability:5000 Metric Ton per Month
Delivery Time: About 20 days after receiving the prepayment
Packing: Wooden pallet packing strong seaworthy, Coils will have to be collected into a pile to build round 3+3 or 7 coils carried on one fumigated wooden pallet. Cardboard flange to be inserted between each coil and to be placed onto the top of the highest one. Shrinking film wrapping the parcel, each parcel composed of 3+3 or 7 coils, will have to be characterized by a label including the dimension, gross weight, tare and net weight, packing number, production date.
