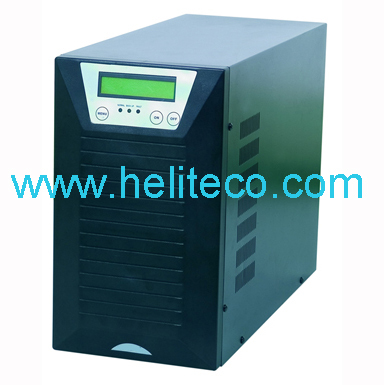

Home UPS Inverter:
Features
1.Super wide input voltage range:90V-280V
2.Four-steps AVR
3.Powerful charging current:500W up to 15A,1KW-4KW,up to 25A
4.Protection against short-circuit
5.Special overload protection,when it is overload,it will lock the unit automatically, when it restores,it will start the unit automatically again
6.when the mains come,it will start the unit automatically
7.Function that it will change its frequency instantly
it is able to drive inductive loads,such as air-conditioner,refrigerator, motor,and so on
8.With RS232,it can realize software control function
Home ups,inverter,IPS technical specification:
model | NC3511 | NC5011 | NC7012 | NC1022 | NC1522 | NC2023 | |
capacity | 350W | 500W | 700W | 1KW | 1.5KW | 2KW | |
Input | voltage range | 90v-280v AC | |||||
frequency rang | 50hz±3% | ||||||
output | AVR | Four steps AVR, 220v±10% | |||||
Inversion voltage | 220v±3% | ||||||
inversion | 50hz±2% | ||||||
frequency | |||||||
DC voltage | 12v | 24v | 48v | ||||
O/P waveform | Sine wave | ||||||
THD | ≤3% | ||||||
Transfer time | ≤4ms Automatic transfer | ||||||
Recharge current | 10-15A | 15-25A | |||||
Transfer efficiency | 85% | 90-96% | |||||
Protections | short-circuit,overload | ||||||
Communication ports | Rs232 | ||||||
Unit size(mm) | 372*122*195 | 379*145*215 | 460*192*335 | ||||
N.W(KG) | 6.8 | 7.8 | 10.8 | 12 | 20.5 | 23.5 | |
G.W(KG) | 7.8 | 9.4 | 12.3 | 13.5 | 22.5 | 25.5 | |
Shipping size(mm) | 485*442*330 | 400*293*218 | 570*297*442 | ||||
2pcs | 2pcs | 1pcs | |||||
| model | NC3023 | NC3523 | NC4023 | NC7024 | NC1034 | NC1535 | |
| capacity | 3KW | 3.5KW | 4KW | 7KW | 10KW | 15KW | |
| Input | voltage range | 90v-280v AC | 175v-265v AC | ||||
| frequency rang | 50hz±5hz | ||||||
| output | AVR | Four steps AVR, 220v±10% | Without AVR220±10% | ||||
| Inversion voltage | 220v±3% | ||||||
| inversion | 50hz±2% | ||||||
| frequency | |||||||
| DC voltage | 48v | 96v | 240v | ||||
| O/P waveform | Sine wave | ||||||
| THD | ≤3% | ||||||
| Transfer time | ≤4ms Automatic transfer | ||||||
| Recharge current | 15-25A | 10A | |||||
| Transfer efficiency | 90-96% | ||||||
| Protections | short-circuit,overload | ||||||
| Communication ports | Rs232 | ||||||
| Unit size(mm) | 460*192*335 | 555*360*720 | |||||
| N.W(KG) | 29.3 | 34.2 | 38.5 | 56.5 | 78.5 | 108.5 | |
| G.W(KG) | 31.5 | 36.5 | 40.5 | 60.7 | 82.8 | 112.8 | |
| Shipping size(mm) | 570*297*442 | 720*450*865 | |||||
