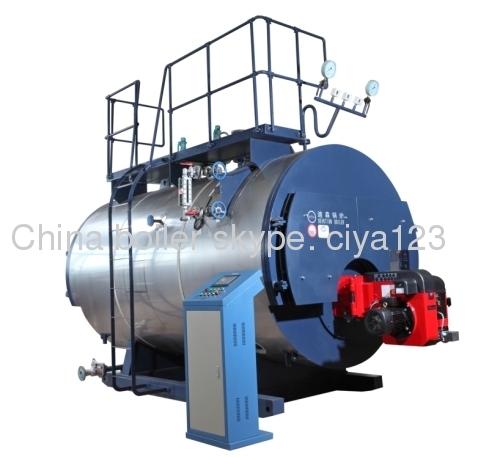

boiler capacity: 500kg/hr~20ton/hr
boiler fuel: diesel oil, heavy oil, natural gas, city gas, LPG
boiler pressure: 4bar ~25 bar optional
1. Adopting reliable three-pass and wet-back structure, more safe and efficient
2. Big combustion room design: Increase furnace radiant heating area, decrease the boiler size, reduce the emission of the NOx
3. Corrugated hearth make the boiler more safe
Threaded tube: Strengthen the heat transfer, increase the boiler heat efficiency
4. Multi-level sealing for flue gas chamber: No flue gas leakage
5. Boiler controller system can run for a long time under high temperature and high humidity condition
6. Multi-level protections like boiler pressure, gas pressure protection and so on.
7. High efficient thermal insulation material, low boiler surface temperature, the heat loss can be neglected
8. Produce according to the national standard, all pressurized components apply fine quality steel
9. Every boiler must be subject to strict inspection and testing before delivery, including hydraulic test and X-ray inspection
10. Selecting the most suitable burner to match the boiler so as to guarantee safety and reach rated output
11. All components, such as pumps, valves are limited to choose international or national renowned- brands.
12. Manhole and handhole: Maintenance is convenient
Customer-tailored design is available.
13. An economizer (Devotion patent) is optional and possible to save 15% fuel, decrease noise 20dB.
14. Applicable fuels: Gas, oil, dual fuel.
boiler fuel: diesel oil, heavy oil, natural gas, city gas, LPG
boiler pressure: 4bar ~25 bar optional
| Technical Data | ||||||||||||
| WNS Steam Boiler | ||||||||||||
| Model | WNS 0.5 | WNS 1 | WNS 2 | WNS 3 | WNS 4 | WNS 5 | WNS 6 | WNS 8 | WNS 10 | WNS 15 | WNS 20 | |
| Rated Steam Output (t/h) | 0.5 | 1 | 2 | 3 | 4 | 5 | 6 | 8 | 10 | 15 | 20 | |
| Rated Working Pre.(Mpa) | 0.4, 0.7, 1.0, 1.25, 1.6, 2.45 Mpa Optional | |||||||||||
| Supply Water Temp.(c) | 20 105 | |||||||||||
| Apllicable Fuel | Light Oil, Heavy Oil, Natural Gas, LPG, City Gas | |||||||||||
| Fuel consumption | Light Oil (Kg/h) | 31.5 | 62.7 | 124.2 | 186.3 | 248.4 | 310 | 350.2 | 467 | 586.2 | 879.3 | 1175 |
| Heavy Oil (Kg/h) | 32.3 | 64.2 | 127.2 | 190.8 | 254.4 | 318 | 358.6 | 478.2 | 600.3 | 901 | 1205 | |
| Natural Gas (Nm3/h) | 37.9 | 75.6 | 149.6 | 224.4 | 299.3 | 351 | 421.6 | 562.8 | 706.2 | 1060 | 1300 | |
| LPG((Nm3/h) | 13.44 | 26.8 | 53 | 79.5 | 106 | 124 | 149.4 | 199.3 | 250.1 | 375 | 503 | |
| City Gas (Nm3/h) | 84.9 | 169 | 334.7 | 502.1 | 669.4 | 828 | 994 | 1258 | 1580 | 2370 | 3169 | |
| Efficiency(%) | 90 | 90.1 | 90.5 | 90 | 90.6 | 90.8 | 90.7 | 91 | 90.8 | 91 | 91.33 | |
| Electricity Consumption | Heavy Oil (KW) | 6.67 | 7.1 | 19.4 | 21.7 | 26.2 | 27.7 | 41.9 | 57.4 | 58.4 | 86.5 | 129 |
| Other Fuel(KW) | 1.86 | 2.6 | 6.2 | 8.5 | 13 | 14.5 | 19.5 | 22 | 32.6 | 51 | 96 | |
| Voltage (V) | 380 50Hz | |||||||||||
| Weight (Kg) | 2905 | 5290 | 6765 | 9795 | 11169 | 13135 | 14858 | 21525 | 26096 | 34800 | 46100 | |
| Water Volume(m 3 ) | 1.5 | 4.46 | 5.54 | 6.3 | 7.8 | 8.7 | 9.1 | 12.7 | 20.4 | 28.7 | 37.4 | |
| Discharge of Flue Gas (m3/h) | 750 | 1476 | 2920 | 4379 | 5777 | 7220 | 8666 | 11493 | 14368 | 21550 | 28785 | |
| Pressure of Flue Gas (Pa) | 100 | 150 | 200 | 270 | 292 | 300 | 308 | 380 | 390 | 420 | 450 | |
1. Adopting reliable three-pass and wet-back structure, more safe and efficient
2. Big combustion room design: Increase furnace radiant heating area, decrease the boiler size, reduce the emission of the NOx
3. Corrugated hearth make the boiler more safe
Threaded tube: Strengthen the heat transfer, increase the boiler heat efficiency
4. Multi-level sealing for flue gas chamber: No flue gas leakage
5. Boiler controller system can run for a long time under high temperature and high humidity condition
6. Multi-level protections like boiler pressure, gas pressure protection and so on.
7. High efficient thermal insulation material, low boiler surface temperature, the heat loss can be neglected
8. Produce according to the national standard, all pressurized components apply fine quality steel
9. Every boiler must be subject to strict inspection and testing before delivery, including hydraulic test and X-ray inspection
10. Selecting the most suitable burner to match the boiler so as to guarantee safety and reach rated output
11. All components, such as pumps, valves are limited to choose international or national renowned- brands.
12. Manhole and handhole: Maintenance is convenient
Customer-tailored design is available.
13. An economizer (Devotion patent) is optional and possible to save 15% fuel, decrease noise 20dB.
14. Applicable fuels: Gas, oil, dual fuel.
Functions
1. Providing steam for indstrial users: Paper mills, pharmacy mills, tobacco factories, printworks, textile mills and so on.
2. Providing steam for civil users: Resturants, laundries, hospitals, saunas, etc.
3. Together with steam-water heat exchanger, providing heating for central air conditioning system and radiators.
4. Providing continious hygenic hot water.
Exported area:
1. Providing steam for indstrial users: Paper mills, pharmacy mills, tobacco factories, printworks, textile mills and so on.
2. Providing steam for civil users: Resturants, laundries, hospitals, saunas, etc.
3. Together with steam-water heat exchanger, providing heating for central air conditioning system and radiators.
4. Providing continious hygenic hot water.
Exported area:
The boiler has been exported to: Philippines, Bangladesh, Malaysia, Myanmar, Indonesia, Thailand, Singapore; Saudi Arabia, U.A.E, Palestine, Afghan; Surinam, Yemen, Peru, Cameroon, Egypt, Lebanon, Sudan, Bolivia, Benin, Algeria, Jordan, Guinea, Ghana, Mauritius, Ecuador, Albania, Ethiopia, Kenya, Libya, Kazakhstan, Azerbaijan, Uzbekistan, Kyrgyzstan, Qatar, Armenia, etc.
