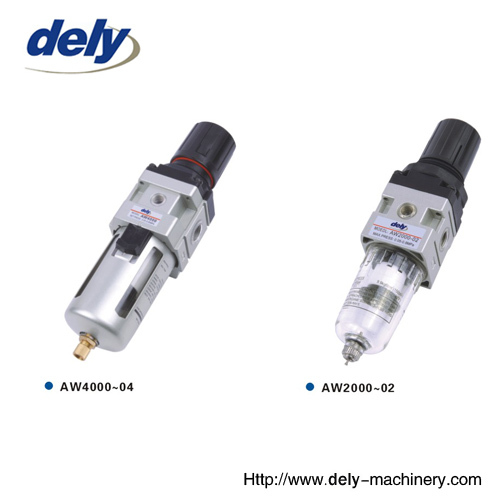

Product name:AW series AW1000~5000(filter+regulator)
Modle number:AW3000-03
AW series AW1000~5000(filter+regulator)
Symbol
Technical Data:
Ensured Pressure Resistance:1.5Mpa(15.3kgf/cm²)
Highest Working Pressure:1.0Mpa(10.2kgf/cm²)
Amibient and Fluid Temperature:5~60℃
Filter Precision:25μm
Bowl material:Polycarbonate
Metal Fuard:Available only for AC2500~5000
Pressure Regulating Range:AC1000:0.05~0.7MPa(0.5~7kgf/cm²) AC2000~5000:0.05~0.85MPa(0.5~8.53kgf/cm²)
Regulator Construction:Relieving Type
*5,50μm available in addition
| Model | Specification | Accessories | ||||||
| Rated Flow (L/min) | Port Size (G) | Pressure Gauge Size (G) | Weight(kg) | Bracket | Pressure Guage | Drain Function | Auto Drain Model | |
| AW1000-M5 | 100 | M5X0.8 | 1/16 | 0.09 | B120 | G27-10-R1 | Manual Drain | - |
| AW2000-01 | 550 | 1/8 | 1/8 | 0.36 | B220 | G36-10-01 | AW2000-01D | |
| AW2000-02 | 1/4 | AW2000-02D | ||||||
| AW3000-02 | 2500 | 1/4 | 0.56 | B320 | Air Shuto Drain | AW3000-02D | ||
| AW3000-03 | 3/8 | AW3000-03D | ||||||
| AW4000-03 | 4000 | 3/8 | 1/4 | 1.15 | B420 | G46-10-02 | AW4000-03D | |
| AW4000-04 | 1/2 | AW4000-04D | ||||||
| AW4000-06 | 4500 | 3/4 | 1.21 | Manual Drain | AW4000-06D | |||
| AW5000-06 | 5500 | 3/4 | 1.7 | AW5000-06D | ||||
| AW5000-10 | 1 | AW5000-10D | ||||||
*Note:under condition inlet pressure 0.7Mpa,outlet pressure 0.5Mpa
RC and NPT port thread are available
Construction/Parts List
| NO. | Demomination | Material | ||
| AW1000 | AW2000~4000 | AW5000 | ||
| 1 | Body | Zinc Die Casting | Aluminium Die Casting | |
| 2 | Bonnet | Reinforced Nylon | Aluminium Die Casting | |
| 3 | Valve core assembly | Brass,Rubber | ||
| 4 | Filter element | Brass | ||
| 5 | Baffle | ABS | ||
| 6 | Diaphragm ass'y | Rubber | ||
| 7 | Deflector | ABS | ||
| 8 | Bowl assembly | Polycarbonate(Cold Rolled Sheet) | ||
| 9 | Spring | Stainless Steel | ||
| 10 | O-ring | Rubber | ||
| 11 | O-ring | Rubber | ||
| 12 | Piston/Seal ass'y/Hirawa | Reinforced Nylon | ||
| 13 | O-ring | Rubber | ||
Dimensions(mm)
| Model | Port Size(G) | A | B | C | D | E | F | G | H | J | K | L | M | N | P |
| AW1000 | M5 | 25 | 109.5 | 50.5 | 25 | 26 | 25 | 28 | 30 | 4.5 | 6.5 | 40 | 2 | 20.5 | 28 |
| AW2000 | 1/8~1/4 | 40 | 164.5 | 78 | 40 | 56.8 | 30 | 34 | 43.5 | 5.4 | 5.4 | 55 | 2.3 | 33.5 | 40 |
| AW3000 | 1/4~3/8 | 53 | 211 | 92.5 | 53 | 60.8 | 39 | 40 | 46 | 6.5 | 8 | 53 | 2.3 | 42.5 | 56 |
| AW4000 | 3/8~1/2 | 70 | 262 | 112 | 70 | 70.5 | 49.2 | 54 | 53.5 | 8.5 | 10.5 | 70 | 2.3 | 52.5 | 73 |
| AW4000-06 | 3/4 | 75 | 267 | 114 | 70 | 70.5 | 49.2 | 54 | 53.5 | 8.5 | 10.5 | 70 | 2.3 | 52.5 | 73 |
| AW5000 | 3/4~1 | 90 | 338 | 116 | 90 | 75.5 | 49.2 | 54 | 62 | 8.5 | 10.5 | 70 | 2.3 | 52.5 | 90 |
Company Profile:
FENGHUA KAIYANG ELECTROMECHANICAL CO.,LTD. specailly manufacturer and market hydraulic ball valve,hydraulic fitting,pneumatic control element,air source units,pneumatic execute element and pneumatic assistant element.We have passed ISO9001:2000 quality system authentication.With advanced technology and equipment,good quality,our products sale far to many countries.In order to meet more and more customer's requirements.
