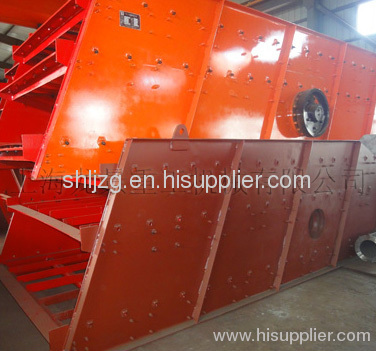

This series of products is a kind of screen equipment designed for materials classification in selecting coal, selecting mineral building materials, electricity and chemical industry. It has features of advanced structure, strong vibration, low vibration noise, easy maintenance, durable and so on. This machine is widely used in products classification in mining, building materials, transportation, energy, chemical industry, and is an ideal machine in crushing and screening joint equipment.
| Model | Screen deck | Screen size (mm) | Max.feed size (mm) | Capacity (t/h) | Vibrating frequency (Hz) | Electric motor power (kW) | Weight (t) | Overall Dimensions (mm) |
| 3YK-1245 | 3 | 1200×4500 | 200 | 15-80 | 16.2 | 11 | 4.807 | 5600×1800×1850 |
| 2YK-1548 | 2 | 1500×4800 | 200 | 30-180 | 13-16 | 15 | 5.800 | 1906×2100×1600 |
| 3YK-1548 | 3 | 1500×4800 | 200 | 30-200 | 13-16 | 15 | 6.866 | 5906×2100×1900 |
| 4YK-1548 | 4 | 1500×4800 | 200 | 30-250 | 13-16 | 18.5 | 7.360 | 5906×2100×2150 |
| 2YK-1854 | 2 | 1800×5400 | 250 | 50-300 | 16.2 | 18.5 | 6.769 | 6509×2536×1810 |
| 3YK-1854 | 3 | 1800×5400 | 250 | 50-300 | 16.2 | 22 | 8.285 | 6509×2536×1910 |
| 4YK-1854 | 4 | 1800×5400 | 250 | 50-300 | 16.2 | 30 | 9.796 | 6509×2536×2250 |
| 2YK-2160 | 2 | 2100×6000 | 250 | 100-400 | 16.2 | 30 | 9.680 | 7150×2670×2120 |
| 3YK-2160 | 3 | 2100×6000 | 250 | 100-400 | 16.2 | 30 | 10.206 | 7150×2670×2270 |
| 4YK-2160 | 4 | 2100×6000 | 250 | 100-400 | 16.2 | 30 | 11.800 | 7150×2670×2650 |
| 2YK-2460 | 2 | 2400×6000 | 300 | 150-600 | 16.2 | 30 | 10.200 | 7150×2900×2650 |
| 3YK-2460 | 3 | 2400×6000 | 300 | 150-600 | 16.2 | 30 | 12.350 | 7150×2900×2350 |
| DF-1230 | 1 | 1200×3000 | 200 | 20-200 | 16.2 | 5.5 | 15.400 | 3500×1800×1100 |
| DF-1548 | 1 | 1500×4800 | 250 | 50-450 | 16.2 | 15 | 3.750 | 5330×2000×1300 |
| DF-1854 | 1 | 1800×5400 | 300 | 70-600 | 16.2 | 15 | 4.590 | 5630×2200×1320 |
| DF-2160 | 1 | 2100×6000 | 300 | 120-750 | 16.2 | 15 | 5.423 | 6550×2600×1420 |
