PE carbon spiral reinforced/reinforcing pipe production line
PE carbon spiral reinforcing pipe production line is mainly used to produce the polyethylene carbon spiral reinforcing pipe for cable shell production , and gradually expand the application areas to electricity , telecommunications , postal service, highway, ports and the other infrastructure in use .
PE carbon spiral reinforcing pipe has high strength , high toughness, corrosion resistance , no deformation .

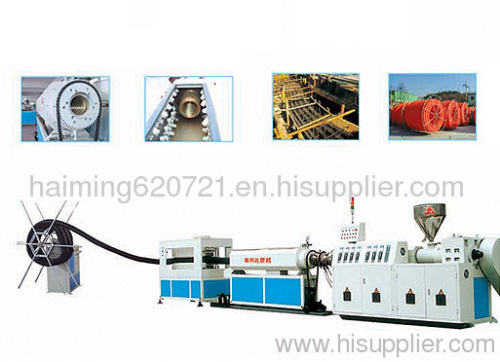

PE carbon spiral reinforced pipe production line
Features of production line:
1. Single screw extruder especially used for polyolefine material possess effective plasticizing effect and high extrusion speed.
2. The special detached type compounding screw an die head with spiral structure & reasonable channel are applicable to produce pipes with smooth inside and outside face.
3. Unique calibration and cooling mode is capable of producing pipe with diameter from φ50 to φ200mm, production speed is up to 0.4~1.5m/min.
4. All kind of polyolefine material, multi-layers spiral strengthening pipe can be co-extruded, recycled materials can be used in production;
5. Optimum spiral copper sizing sleeve, its entrance carrying pre -cooling and powerful vacuum device to suit for high speed extruding pipe. Stainless steel cooling water trough is three-dimensional regulation, longitudinal moved by motor.
6. High efficient cooling comes from peculiar spraying nozzle and high efficiency water pump.
Main technical parameter :
Extruder model | SJ-65/30B | SJ-90/30B |
Pipe diameter range(mm) | 50-150 | 75-200 |
Sizing water tank | SJZL-150 | SJZL-200 |
Hauling off unit | SLQ-150 | SLQ-200 |
Line speed(m/min) | 0.6-1.5 | 0.6-1.5 |
Output(kg/h) | 20-60 | 50-100 |
Main motor power(Kw) | 32.7 | 50.2 |
Winder | SQ-150 | SQ-200 |
