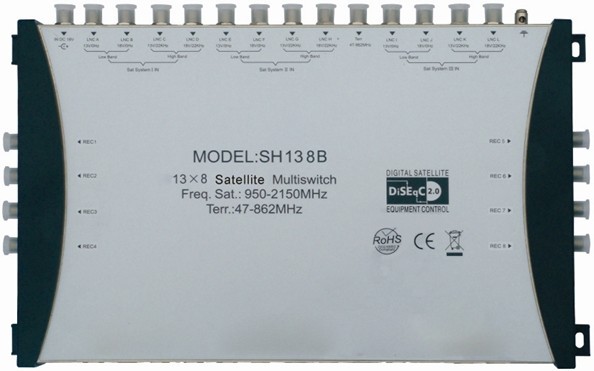

Terr 47-862MHz 13 input 8 output satellite multiswitch

Trade Term: FOB
Payment Terms: T/T,WU
Trade on HiSupplier, Worry Free Guarantee
Trading safety, secure your money, lower the risk, protect both buyers and suppliers
HiSupplier is a Chinese multinational company in U.S, it helps to coordination and order landing.
More ›
  • Product Details
  • Company Profile
  • Product Reviews
Basic Info.
  • Switching voltage: 15±1V
  • Sitching coands: 13V,18V,13V/22KHz,18V/22KHz
  • Switching Adapter: 18V 2.5A
  • Outputs:
  • Inputs: 12SAT+1 Terr
  • Freuency response: 47-2150MHz
  • Model No.: SH138B
  • Place of Origin: Guangdong
  • Min.Order: 50 Piece/Pieces
  • Means of Transport: Ocean
Supply Capacity
  • Production Capacity: 3000 pcs-5000 pcs
  • Packing:neutral packing or Accordingto request the color box packaging
  • Delivery Date: 25 days
product name:Terr 47-862MHz satellite multiswitch

12 satellite IF 1 terrestrial TV inputs to 8 outputs for satellite receivers
Allow use of 3 Quatro or up to 6 Dual or Twin LNBs.
Single coaxial cable conveys both satellite and terrestrial signal.
External Switching Power Supply can set up the operational power of LNB.
Sheet metal housing with plastic holder.
All users can view all channels select satellite signal by analogue commands 13V/18V/ 0/22kHz tone orDiSEqC2.0\DiSEqC1.0 and Tone Burst signal provided by receivers

All of our product according to RoHS compliance,we can supply all certificate for your refernece

Terr 47-862MHz satellite multiswitch

   Frequency response47-2150MHz
   Inputs12SAT+1 TerrF connectors
   Outputs8F connectors
   Insertion LossTerr 47-862MHz2dB
Sat 950-2150MHz2dB
   Return LossTerr in 47-862MHz12dB
Sat in 950-2150MHz12dB
Terr out 47-862MHz8dB
Sat out 950-2150MHz8dB
   IsolationLNB-LNB 950-2150MHz35dB
OUT-OUTTerr 47-862MHz26dB
Sat 950-2150MHz30dB
H/VSat 950-2150MHz26dB
   Switching voltage15±1V
   Switching commands13V,18V,13V/22KHz, 18V/22KHz DiSEqC2.0
   Switching Adapter18V 2.5AOptional

shenzhen broadvision technology limited is a professional Trading Company. Our main products series include sat,.With the advanced production facility, strong technical ability and professional production capability, we're sure that we can supply customers with the high quality and best design.Main Export Markets:North America
