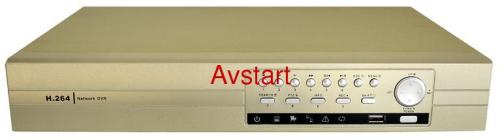

H.264 8CH Standalone DVR
Video Compression Format | H.264 |
Video System | NTSC / PAL |
GUI OSD | YES |
Video Input(BNC) | 8CH BNC input(composite video signal 1Vp-p 75Ω BNC) |
Video Output(BNC) | 1CH BNC output |
Audio Input/Output | 8CH audio input,1CH audio output(RCA) |
Maximum Recording Rate(D1/ HD1/ CIF,CH1&CH2 max at D1&HD1&CIF;CH3-CH8 at CIF) | D1:704×480 pixels with 60 IPS /704×576 pixels with 50 IPS HD1:704×240 pixels with 60 IPS /704×288 pixels with 50 IPS CIF:352×240 pixels with 240 IPS /352×288 pixels with 200 IPS QCIF:176×120 pixels with 240 IPS /176×144 pixels with 200 IPS |
Image Quality Setting | Supper Best,Well,Good,Medium,Normal and Bad |
Hard Disk Storage | Support two SATA HDD, max capacity is 2TB/pc |
Alarm Input/Output(Optional) | 1 alarm input,1 alarm output With Alarm Modelè DVR-9008VS |
Multiplex Operation | Live display/record/playback/backup/network transmit |
Recording Mode | Manual/Timer/Motion/Alarm |
Playback Mode | Multiple slow and rapid play speeds,manual and single-frame play modes,and support of drag the sliding bar to set. |
Backup Device | USB flash disk/USB remove HDD/Network/USB DVD-RW |
Pre-alarm Recording | Recording for 10 seconds before alarming |
Network Protocol | TCP/IP\PPPOE \DDNS and NTP |
Ethernet remote view | Support remote surveillance up to 10 users simultaneously |
CMS software | YES |
Mobilephone View | YES |
Electronic zoom | YES |
VGA Interface | YES |
Log record function | YES |
Image Tour | YES |
USB Mouse & IR Remote control | YES |
Video Loss Detection | YES |
Video Adjustable | Hue /Saturation /Contrast /Brightness adjust |
PTZ Control | YES,built-in RS-485 port |
Power Source | DC 12V |
Key Lock(Password Protection) | YES |
Power-down recovery function | YES |
Size(mm) | 370(W) x 72(H) x 285(D) |
Feature:
1.Second-generation video compression of H.264(Main Profile)
2.Triplex Operation- recording, playback, network transmission, backup, mobile browsing and interface operation
3.Two high-speed USB2.0 interface
4.Powerful CMS features, which can display 64 large-scale centralized management of the video
5.Support parameter settings, preview, playback & download remotely by IE and client sofeware
6.Support Multi-language menu: Chinese, English, Thai, Russian, French, Spanish, etc.
7.Support mobile browsing for Window Mobile, Symbian, Android, iPhone, BlackBerry.
