F series foot valve have 1/4'', M5 and 1/8'', including 3/2, 4/2 and 5/2, spring return type, with lock, with cover, with lock and cover type. Also produce the special valve according to the customers' requirements.
L:With lock,G:With Protect Cover,LG:With lock & Cover
L:With lock,G:With Protect Cover,LG:With lock & Cover
The 4F foot valve is controled by foot step on it. They are 2/5 valves., can be with cover and lock.They have very steady quality.
Working Medium :Micron Filtered Air
Position and Way numder: Tow-position Five-way
Joint Pipe Bore :Air Inlet=Air Outlet=G1/4 Exhaust=G1/8
Motion Pattem :Direct Drive Type
Working-Pressure range: 0~0.8Mpa
Operating Temperature Range: 0~60℃
Working Medium :Micron Filtered Air
Position and Way numder: Tow-position Five-way
Joint Pipe Bore :Air Inlet=Air Outlet=G1/4 Exhaust=G1/8
Motion Pattem :Direct Drive Type
Working-Pressure range: 0~0.8Mpa
Operating Temperature Range: 0~60℃

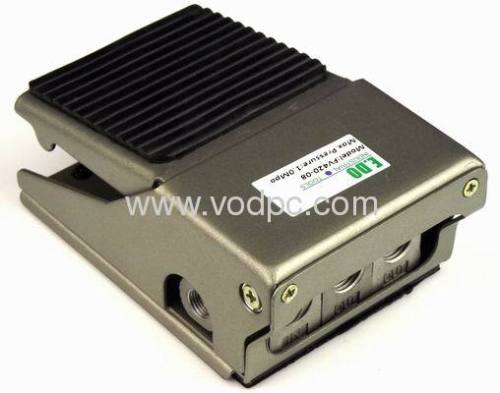

Product name:FV422-08,or ,FV420
