DirecTV / Dish Network digital 6 way stand-alone multiswitch

Payment Terms: T/T,WU
skype
Trade on HiSupplier, Worry Free Guarantee
Trading safety, secure your money, lower the risk, protect both buyers and suppliers
HiSupplier is a Chinese multinational company in U.S, it helps to coordination and order landing.
More ›
  • Product Details
  • Company Profile
  • Product Reviews
Basic Info.
  • Brand Name: Broadvision
  • SAT Frequency range:: 950 - 2150 MHz
  • Satellite IF input::
  • Output::
  • Insertion Loss:: 3 dB
  • Switch command voltage:: 13V, 18V
  • Housing material: Zinc die casting housing, nickel plated
  • Model No.: SH26F
  • Place of Origin: Guangdong
  • Min.Order: 50 Piece/Pieces
  • Means of Transport: Ocean, Air
Supply Capacity
  • Production Capacity: 50000 pcs /month
  • Packing:Export standard carton; or giftbox according to csutomer requiremnt
  • Delivery Date: within 25 days
This is DirecTV / dish network dital 6 way stand-alone multiswitch tap for the distribution of two SAT-IF polarities and 6 output for picking up satellite TV.

Feature:
Zinc Die Cast Housing, nickel plated.
2 satellite IF inputs for 6 satellite receivers.
2 satellite IF inputs selected by 13V/18V signal.
Built-in amplifier, no need power adaptor supporting.
Low insertion loss, high isolation and return loss.
SAT-IF- PATHs to the subsribers are active and supplied by the receivers.
Design good for indoor useage.


DirecTV / Dish Network digital 6 way stand-alone multiswitch
                                                                                 Model Name: SH26F

Specification
ItemTypicalQC LimitRemark
Frequency RangeSAT:950~2150MHz
Inputs2 SATF connectors
Outputs6 ReceiverF connectors
Insertion Loss3dB4dB
Return Loss12dB10dB
IsolationREC-REC35dB30dB
H/V30dB25dB
Switching VoltageV:10~14.5V     H:15~20V
Dimensions (L,W,H)128×86×16mm



Carton information:
Carton size: 44*34*24 cm
one outer carton contain 200 pcs 2x6 zinc die casting.

DirecTV / Dish Network digital 6 way stand-alone multiswitch

Testing :
All our products are testing four times;
DirecTV / Dish Network digital 6 way stand-alone multiswitch

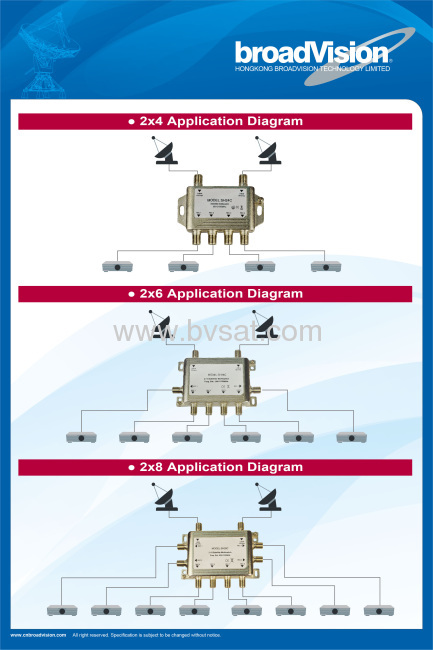

Application Diagram:

DirecTV / Dish Network digital 6 way stand-alone multiswitch
