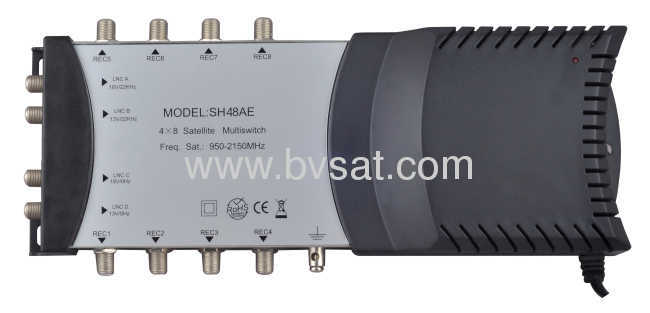

Featrues: | ||||
1 4 satellite IF inputs for 8 satellite receiver | ||||
2 4 satellite IF inputs selected by 13V\18V and 22KHz signal | ||||
3 Low insertion loss, high isolation and return loss | ||||
4 SAT-IF-PATHs to the subscribers are active and supplied by the receiver | ||||
5 Sheet metal housing with plastic holder | ||||
6 Design good for indoor usage | ||||
Specifications | ||||
Specifications Item | Typical | QC Limit | Remark | |
Frequency Range | SAT:950~2150MHz | |||
Inputs | 4 SAT | F connectors | ||
Outputs | 8 Receiver | F connectors | ||
Insertion Loss | SAT | 0dB | 2dB | |
Return Loss | SAT | 12dB | 10dB | |
Stop band attenuation | SAT | 25dB | 20dB | |
Isolation | H/V | 30dB | 25dB | |
REC-REC | 30dB | 25dB | ||
Switching Voltage | V:10~15.2V H:15.2~20V | |||
Power Supply | IN:90~264V OUT:18V 1200mA | |||
Dimensions (L,W,H) | 285×125×70 | mm |
Related products recommend:

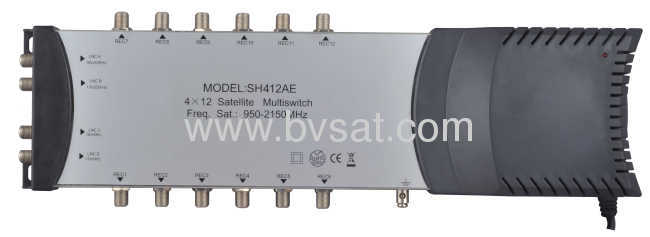

Model:SH412AE

Model:SH416AE

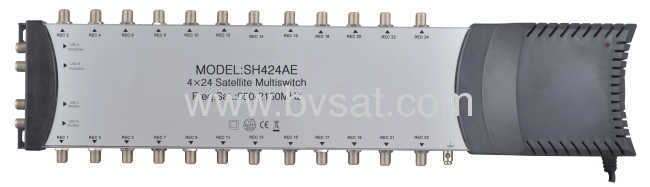

Model:SH420AE
