Twin Screw Barrel
Twin Screw barrels: High Precision Twin Screw barrels manufactured by us are Perfect matched to the Original, in Specifications, Output, quality and Life besides being Economically Priced
Twin Screw Barrels are Designed in a variety of designs to suit Pipes, Profiles, Sheets and Compounds and are Tailored to meet individual application need. Ground or Honed Bores and having Nitrogen Case Hardened Surfaces making them Extremely Durable and Wear Resistant.
Twin Screw barrels: High Precision Twin Screw barrels manufactured by us are Perfect matched to the Original, in Specifications, Output, quality and Life besides being Economically Priced
Twin Screw Barrels are Designed in a variety of designs to suit Pipes, Profiles, Sheets and Compounds and are Tailored to meet individual application need. Ground or Honed Bores and having Nitrogen Case Hardened Surfaces making them Extremely Durable and Wear Resistant.
We are speciaized in manufacturing and rebuilding screw of every type and size: Extruder Screw,Injection Molding Screw,Blow Molding screw,Twin Screw,Foam Screw,Continuous Mixer Screw,Densifying Screw,Rubber Processing screw,Food processing screw.
Technical Parameter |
| Steel Material | DIN 41CrA1Mo7 / AST M4140 / GB 38CrMoAlA /DC53/SKD61/HTP |
| Deepness of Nitriding Layer | 0.7 mm -0.9 mm |
| Hardness of Nitriding | HV900 - HV1,000 |
| Nitriding Brittleness | ≤Grade 1 |
Chromate plating | Thickness 0.05 mm - 0.10 mm, hardness HV950 |
Special treatment | Carbide coating on screw flight and bimetallic barrel |
| Screw straight tolerance | 0.015 mm/m |
| Surface roughness | Ra 0.4μm |
Instructions for our Screw&Barrel:
1.We are a professional company specialized in manufacturing many types of screw, the barrel can be applied on all types of injection moulding machine,rubber hot-feeding extruder, rubber cold-feeding extruder, pin barrel cold feed extruder, plastic extruder with different specifications.
2.The models of screw include:
2.The models of screw include:
Variable pitch and variable depth, variable pitch and equal depth, variable depth and equal pitch, and equal depth and pitch.Groove multi-die type, composite type, mixing type and separating type.
3. The material of screw: manufactured with high-quality nitro alloy steel, applying the method of hardening and tempering and nitriding, thus it enjoys the characteristics of long working life, wear resistance, and anti corrosion. Besides, the technique of hard alloy spraying or chrome plating can be used on the working surface of screw, which will make it have better using effectiveness.

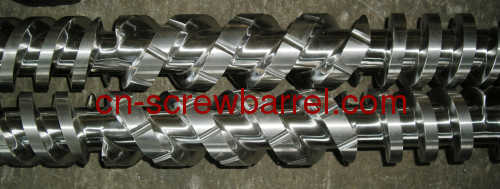

Twin screw and barrel
Parallel Twin Screw and Cylinder
Twin screw deisgn for PVC material
Twin screw and barrel
Parallel Twin Screw and Cylinder
Twin screw deisgn for PVC material
