Type | Screen Belt W(mm)×L(m) | Heating power(kw) | Pressure (Mpa) | Output (kg/h) |
DHW--70 | 76×10 | 2.5 | ≤40 | ≤200 |
DHW--100 | 107×10 | 3.5 | ≤40 | ≤500 |
DHW--120 | 130×10 | 5 | ≤35 | ≤800 |
DHW--150 | 160×10 | 7.5 | ≤35 | ≤1500 |
DHW--170 | 180×10 | 12.5 | ≤35 | ≤2000 |
DHW--200 | 210×10 | 14 | ≤35 | ≤3500 |

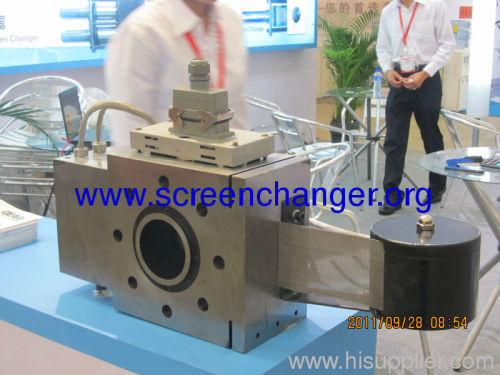

Automatic belt screen changer- melt filter
The automatic belt screen changer is a compact, self-contained screen changer that eliminates the need for hydraulics, screen packs, breaker plate cleaning or replacement, with no electric motors or hydraulics.
The automatic belt screen changer is a compact, self-contained screen changer that eliminates the need for hydraulics, screen packs, breaker plate cleaning or replacement, with no electric motors or hydraulics.
How to work
The screen moves across the flow of plastic melt and a fresh screen enters as the spent filter screen exits; removing the impurities from the raw material. The belt screen changer is fitted between the end flange of the extruder and the die. A cassette holding a roll of screen filter is attached to the side of the belt screen changer block. The controlling box of belt screen changer is equipped with a pressure sensor, and a pressure warning device, when the pressure is raise to the preset , it will automatically alarm, at the same time, the screen is replaced automatically. And the cooling system begin to work , the impurity is cooled and moved out with the filter screen.
1)Moving screen mesh heater;
2)Adiabatic isolation hole
2)Adiabatic isolation hole
3)Export cooling area water holes
4)Adiabatic isolation hole
5)Filtering district heating holes
6)Flow direction
4)Adiabatic isolation hole
5)Filtering district heating holes
6)Flow direction
7)inlet heat insulation hole
8)outlet cooling water area
9)Fine mesh belt
10)Support mesh(coarse screen)
8)outlet cooling water area
9)Fine mesh belt
10)Support mesh(coarse screen)
11)Support of the porous plate mesh
12)outlet of cooling water holes
12)outlet of cooling water holes
Widely used for:
1. Extruders (Plastic Extruder, Cast Film, Blown Film Extruder, etc)
2. Plastic pipe production line
3. Pipe, PA, PET and PVC sheet extrusion lines
4. Pelletizer,Granulation, Non-woven, Plastic recycling and Monofilament machine
Our advantages
We are specialized in the research and manufacturing of melt filtration device/hydraulic screen changer for more than 20 years. With strong scientific research team and mature technology; hold many international and national invention patents.
Our items can not only filter impurities, but also can greatly improve the plasticizing and homogenization effect of the raw material, make the product structure more homogeneous and product surface smoothness and quality much better, energy-saving and consumption-reducing, output- increasing and labor-saving
1. Extruders (Plastic Extruder, Cast Film, Blown Film Extruder, etc)
2. Plastic pipe production line
3. Pipe, PA, PET and PVC sheet extrusion lines
4. Pelletizer,Granulation, Non-woven, Plastic recycling and Monofilament machine
Our advantages
We are specialized in the research and manufacturing of melt filtration device/hydraulic screen changer for more than 20 years. With strong scientific research team and mature technology; hold many international and national invention patents.
Our items can not only filter impurities, but also can greatly improve the plasticizing and homogenization effect of the raw material, make the product structure more homogeneous and product surface smoothness and quality much better, energy-saving and consumption-reducing, output- increasing and labor-saving
