Specifications:

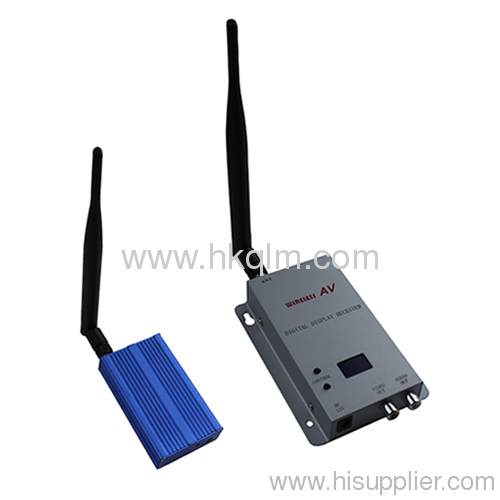

Transmitter | Volume | 88*52*20mm |
Channel | 15 adjustable | |
Voltage/Current | 12V 600mA | |
Operation Temperature | -20 to +60 centigrade | |
Frequency | 0.9 -1.2GHz | |
Power | 1500mW32dBm | |
Wireless range | 500-2000M(in eye sight) | |
Video output | 1Np—p | |
Audio/Video input port | AV(RCA) | |
Receiver | Volume | 135*80*21mm |
Operation Temperature | -20 to +60 centigrade | |
Voltage/Current | 9-12V/250mA | |
Frequency | 0.9-1.2GHz | |
Sensitivity | -85dBM | |
Audio/Video output port | AV(RCA) | |
Accessories | Power adapter | 2 pcs |
3dBantenna | 2 pcs | |
AV cable | 2 pcs | |
Usermanual | English manual 1 pcs |
Channel and Frequency:
TX | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | A | b | c | d | E | F |
RX | 01 | 02 | 03 | 04 | 05 | 06 | 07 | 08 | 09 | 10 | 11 | 12 | 13 | 14 | 15 |
MHz | 993 | 1021 | 1051 | 1060 | 1080 | 1100 | 1120 | 1140 | 1160 | 1180 | 1200 | 1220 | 1240 | 1260 | 1280 |
Notice:
For better reception, please make sure that the transmitter and the receiver are placing at least 5 feet above ground. Distance affected by the nature of environment such as noise, weather, traffic, building, trees ... etc.
Antenna must be attached on the transmitter before power up. Otherwise, the transmitter will be burned out because the excess power cannot be released by the antenna. If you need longer range,you need to install high gain antenna such as 13DB yagi antenna.
Antenna must be attached on the transmitter before power up. Otherwise, the transmitter will be burned out because the excess power cannot be released by the antenna. If you need longer range,you need to install high gain antenna such as 13DB yagi antenna.
