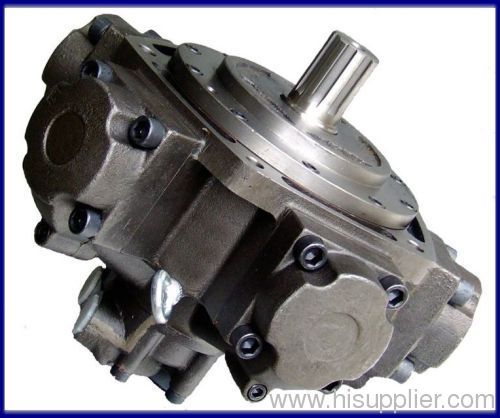

Intermot IAM H series Radial Piston Hydraulic Motor

Share |

Intermot IAM H series Radial Piston Hydraulic Motor

HiSupplier Escrow

Add to My Favorites

Trade on HiSupplier, Worry Free Guarantee

•Trading safety, secure your money, lower the risk, protect both buyers and suppliers

•HiSupplier is a Chinese multinational company in U.S, it helps to coordination and order landing.

More ›

Product Details
Company Profile
Product Reviews

Basic Info.

Place of Origin: Zhejiang
Min.Order: 1 Piece/Pieces

Supply Capacity

Packing:Wooden box

Technical Performance data

Model	Displacement cc/rev	Rated Torque N.m	Theoretical Unit Torque N.m/MPa	Rated Pressure MPa / Bar	Max Pressure MPa	Max Speed r/min	Weight KG
IAM 150 H1	151	480	24	20/ 200	28	650	26
IAM 200 H1	207	523	33	16/160	25	550
IAM 250 H1	235	689	38	16/160	25	500
IAM 300 H1	318	809	51	16/160	25	400
IAM 250 H2	254	810	40	20/ 200	28	600	42
IAM 300 H2	289	920	46	16/160	25	500
IAM 350 H2	339	864	54	16/160	25	420
IAM 400 H2	403	1027	64	16/160	25	350
IAM 450 H2	451	1148	72	16/160	25	300
IAM 400 H3	397	1265	63	20/ 200	28	500	68
IAM 450 H3	452	1440	72	20/ 200	28	480
IAM 500 H3	452	1562	78	20/ 200	28	450
IAM 600 H3	593	1890	95	20/ 200	28	420
IAM 650 H3	660	1680	105	16/160	25	400
IAM 700 H3	706	1800	112	16/160	25	380
IAM 750 H3	754	1921	120	16/160	25	350
IAM 700 H4	714	2260	113	20/ 200	28	400	92
IAM 800 H4	792	2520	126	20/ 200	28	400
IAM 900 H4	904	2860	143	20/ 200	28	380
IAM 1000 H4	992	3140	157	20/ 200	28	320
IAM 1100 H4	1116	3540	177	20/ 200	28	300
IAM 1250 H4	1247	3740	187	20/ 200	28	280
IAM 1400 H4	1315	3344	209	16/160	25	250
IAM 1400 H5	1413	4500	225	20/ 200	28	300	173
IAM 1600 H5	1648	5248	262	20/ 200	28	250
IAM 1800 H5	1815	5184	288	18/180	28	220
IAM 2000 H5	2035	5168	323	16/160	25	200
IAM 2200 H5	2267	5763	360	16/160	25	160
IAM 3000 H5	3041	7326	483	16/160	25	120
IAM 2500 H6	2553	9523	405	25/ 250	32	120	308
IAM 2800 H6	2683	10559	443	25/ 250	32	120
IAM 3000 H6	3063	9135	485	20/ 200	28	120
IAM 3200 H6	3218	9392	500	20/ 200	28	120
IAM 3500 H6	3462	10220	544	20/ 200	28	120
IAM 4000 H6	4155	12481	665	20/ 200	28	110
IAM 3900 H7	4155	12481	665	20/ 200	28	120	410
IAM 4600 H7	4524	13508	720	20/ 200	28	120
IAM 5000 H7	4988	15900	795	20/ 200	28	100
IAM 5400 H7	5499	17490	875	20/ 200	28	100
IAM 6300 H8	6765	18330	975	20/ 200	28	125	600-700
IAM 8000 H8	8298	23000	1223	20/ 200	28	125
IAM 10000 H8	9982	25550	1669	20/ 200	28	100
