Specifications
1.PVC Pipe range:16-400mm
2,total installed Power:110kw
3.Capacity:150-350kg/h
PVC UPVC drainage pipe extruder machine
Characteristics of the equipment :
PVC material series plastic pipe extruder machinery is mainly used in the area of drainage system, pipelines system, etc. This machine group consists mainly of vacuum calibrating tank, haul-off unit, cutting unit, piling, etc. twin screw extruder and haul-off unit have applied imported A/C inverter, both vacuum pump and driving motor have applied excellent products.
The main machine adopts screws specially used for polyolefin. Equipped with auto vacuum charger and
auto constant temperature dryer and hopper, it possesses features of high production, good plasticization and stable extruding.
Die heads of helical type and basket type are perfect for polyolefin, and can help to produce sound melting pressure, and improve the plasticization capacity. Meanwhile, stable material-flow and pressure grade canbe guaranteed.
Advanced vacuum calibrating method improves the cleanliness and hardness of surface. Reasonable
high-speed sprinkling cooling water tank guarantees the pipe quality and high speed stable extruding.

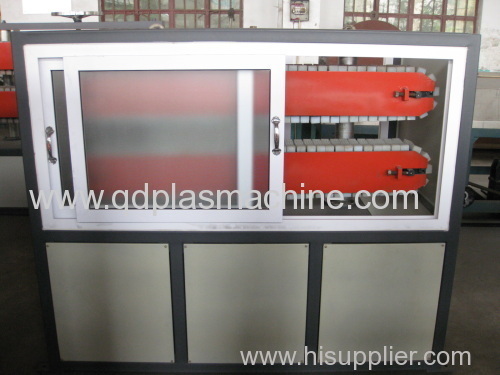

Caterpiller of the hauling machine adopts anti abrasion alloy material, which realizes stable traction, wide
frequency adjustment range and long lifespan. The haul-off unit includes two-claw type, three-claw type, four-claw type, six-claw type,
Highly professional. Manufacture all kinds of our wide range High quality Plastic Extrusion Machineries. Products and suppliers , search now!
High speed PVC UPVC pipe extruder machinery is advanced extrusion machinery as to produce an extensive range of PVC pipes and other utilities products from pvc to be used in water transmission system. The plasticzied capacity of High speed PVC pipe extrusion machine ranges between 150kg/hr to 500kg/hr.
High speed PVC UPVC pipe extruder machinery is advanced extrusion machinery as to produce an extensive range of PVC pipes and other utilities products from pvc to be used in water transmission system. The plasticzied capacity of High speed PVC pipe extrusion machine ranges between 150kg/hr to 500kg/hr.
After-sales Service Provided: Engineers available to service machinery overseas
mould: change molds to produce different pipe products.
Technical data:
model/parameter | SJZ65 | SJZ80 | SJZ92 |
max.pipe diameter | 160mm | 400mm | 630mm |
cooling water volume | 6 | 9 | 13 |
tractive speed | 0.4-3m/min | 0.4-3m/min | 0.4-3m/min |
installment capacity | 95kw | 135kw | 255kw |
