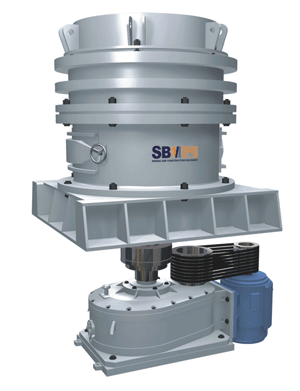

MSB Coarse Powder Mill

Working Principle
Step with main shaft, bulk disk and roller bracket is driven by motor through reducer. Installed above bracket, roller assembly rotates with main shaft and swings freely meantime, this bring a large centrifugal force, which scatters bulk materials evenly in grinding intermediate layer between central roller and ring. The bulk materials are grinded into powder and fall on the bottom, and then discharged from discharging opening under the effect of synchronously-rotating scraper.

Technology Advantages

1. High efficiency of wear material, wear evenly, the lifetime is three times higher than that of Raymond Mill;
2. High percentage of sand can be produced by this machine;
3. The mill is a highly efficient desulfurization equipment of power plant. It can grind CaCO3 into fine powder less than 1-2mm, the desulfurization effect is better;
4. This machine can be used as pre-grind equipment before ball mill; the ball mill efficiency will increase 50%;
5. Products out of this machine can be used to make firebrick, concrete brick, block and other new building materials;

Mainly used for pre-processing of various crushable non-inflammable & non-explosive brittle material with Mohs Hardness less than nine.

MSB Coarse Powder Mill Specification

Name/Parameter/Product Model MSB1004 MSB1205 Roller quantity(pcs) 4 5 Max. feeding size(mm) <30 <35 Product size(mm) 70-90%<2 70-90%<2 Capacity(ton/hour) 8-15 16-30 Main motor power(kw) 37-45 75-90 Overall size(mm)(LxWxH) 1870x1500x2580 2350x1850x2850 Total weight (excluding electricity control cabinet)(ton) 8 14 Optional Equipment Jaw crusher PE(X)150x750 PE(X)250x1000 Power(kw) 15 30 Bucket elevator TH250 TH315 Power(kw) 3 7.5 Vibrating feeder GZ3F GZ4F Power(kw) 0.2 0.4 Note: This specification is just for reference, any changes are subject to the msb coarse powder mill products
