Specifications
water pump
Run Dry Without Damage
CE, Hose Kit Included
Self-priming, Max.60 degrees
 |
SURFLO 12 volt electric high pressure water pump |
|
|
| Application: |

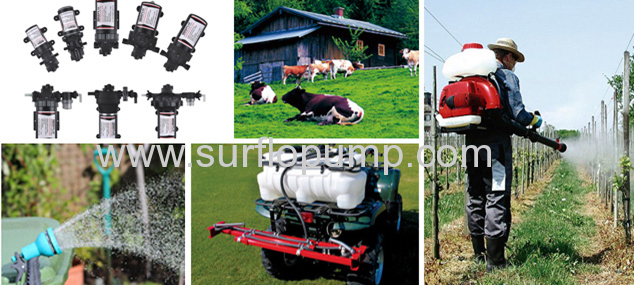

Agriculture/Yacht / RV/Caravan pressurized water system Sprayer fixture (Vehicle-mounted sprayer, electric sprayer) Cleaning machine, Humidifier, Water purification, Medical apparatus Any other pressurization system
|
Materials of Construction |
| Housings: | Polypropylene | | Valves: | Viton | | Diaphragm: | Santoprene | | Fasteners: | Stainless Steel | | Motor Shell: | Coated Steel |
|
| How a Diaphragm Pump Works |
The pump is driven by an AC or DC motor In front of the motor is a valve assembly containing two to five valve pump chambers. Each valve chamber
has a diaphragm behind it in the lower pump housing. As the motor shaft turns, an internal cam positioned behind the diaphragms causes the diaphragms to be pushed forward, then back in a continuous sequence creating a suction. As this suction builds, fluid is pulled through the inlet, through the various valve chamber check valves to the outlet The volume of flow is determined by several factors including: the number and size of the pump chambers, cam offset, operating pressure, fluid viscosity |
|
|
 |

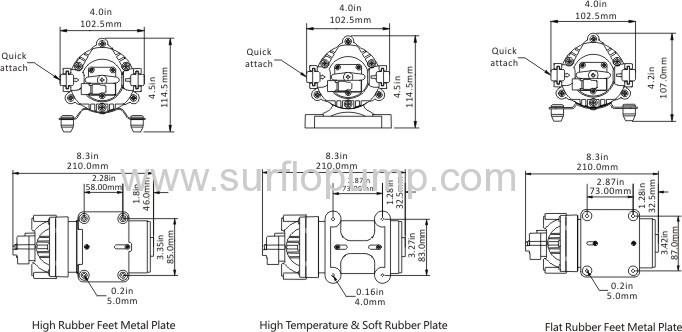

| STANDARD PUMP CONFIGURATIONS |
|
| Model | Switch | GPM/LPM | PSI/BAR | Max Draw(A) | Valves | Diaphragm | Ports | Voltage | Wire Connections | | KDP-3580A | Demand | 1.5/5.5 | 80/5.5 | 7 | Viton | Santoprene | 5/8" Quick Attach | 12V | 2-Pin/Leads | | KDP-3580B | Demand | 1.5/5.5 | 80/5.5 | 4 | Viton | Santoprene | 5/8" Quick Attach | 24V | 2-Pin/Leads | | KDP-35100A | Demand | 1.5/5.5 | 100/6.9 | 9 | Viton | Santoprene | 5/8" Quick Attach | 12V | 2-Pin/Leads | | KDP-35100B | Demand | 1.5/5.5 | 100/6.9 | 4.5 | Viton | Santoprene | 5/8" Quick Attach | 24V | 2-Pin/Leads | | KDP-35120A | Demand | 1.5/5.5 | 120/8.3 | 10 | Viton | Santoprene | 5/8" Quick Attach | 12V | 2-Pin/Leads | | KDP-35120B | Demand | 1.5/5.5 | 120/8.3 | 5 | Viton | Santoprene | 5/8" Quick Attach | 24V | 2-Pin/Leads | | KDP-35160A | Demand | 1.5/5.5 | 160/11.0 | 12 | Viton | Santoprene | 5/8" Quick Attach | 12V | 2-Pin/Leads | | KDP-35160B | Demand | 1.5/5.5 | 160/11.0 | 6 | Viton | Santoprene | 5/8" Quick Attach | 24V | 2-Pin/Leads | | KDP-3580C | Demand | 1.8/7.0 | 80/5.5 | 9 | Viton | Santoprene | 5/8" Quick Attach | 12V | 2-Pin/Leads | | KDP-3580D | Demand | 1.8/7.0 | 80/5.5 | 4.5 | Viton | Santoprene | 5/8" Quick Attach | 24V | 2-Pin/Leads | | KDP-35100C | Demand | 1.8/7.0 | 100/6.9 | 10 | Viton | Santoprene | 5/8" Quick Attach | 12V | 2-Pin/Leads | | KDP-35100D | Demand | 1.8/7.0 | 100/6.9 | 5 | Viton | Santoprene | 5/8" Quick Attach | 24V | 2-Pin/Leads | | KDP-35120C | Demand | 1.8/7.0 | 120/8.3 | 12 | Viton | Santoprene | 5/8" Quick Attach | 12V | 2-Pin/Leads | | KDP-35120D | Demand | 1.8/7.0 | 120/8.3 | 6 | Viton | Santoprene | 5/8" Quick Attach | 24V | 2-Pin/Leads | | KDP-35120E | Demand | 1.5/5.5 | 120/8.3 | 0.8 | Viton | Santoprene | 5/8" Quick Attach | 110V | Leads | | KDP-35120F | Demand | 1.5/5.5 | 120/8.3 | 0.5 | Viton | Santoprene | 5/8" Quick Attach | 220V | Leads | | KDP-35160E | Demand | 1.5/5.5 | 160/11.0 | 1.1 | Viton | Santoprene | 5/8" Quick Attach | 110V | Leads | | KDP-35160F | Demand | 1.5/5.5 | 160/11.0 | 0.6 | Viton | Santoprene | 5/8" Quick Attach | 220V | Leads |
|

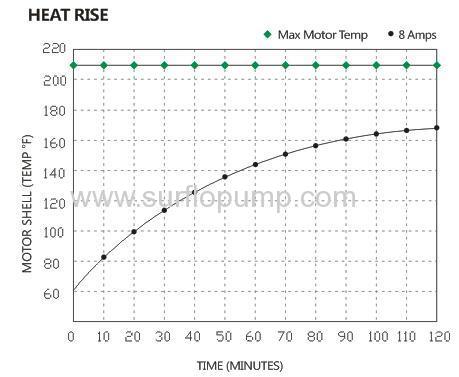

| PUMP PERFORMANCE 1.8 GPM |
| 1.5 GPM | | PSI | BAR | GPM | LPP | PSI | BAR | GPM | LPM | | OPEN | 0 | 1.77 | 6.7 | OPEN | 0 | 1.43 | 5.4 | | 10 | 0.69 | 1.66 | 6.3 | 10 | 0.69 | 1.36 | 5.15 | | 20 | 1.38 | 1.56 | 5.9 | 20 | 1.38 | 1.27 | 4.8 | | 30 | 2.07 | 1.48 | 5.6 | 30 | 2.07 | 1.22 | 4.62 | | 40 | 2.76 | 1.4 | 5.3 | 40 | 2.76 | 1.16 | 4.4 | | 50 | 3.45 | 1.29 | 4.9 | 50 | 3.45 | 1.11 | 4.2 | | 60 | 4.14 | 1.22 | 4.6 | 60 | 4.14 | 1.06 | 4 | | 70 | 4.83 | 1.19 | 4.5 | 70 | 4.83 | 1.03 | 3.9 | | 80 | 5.52 | 1.16 | 4.4 | 80 | 5.52 | 1 | 3.8 | | 90 | 6.21 | 1.14 | 4.3 | 90 | 6.21 | 0.98 | 3.7 | | 100 | 6.9 | 1.11 | 4.2 | 100 | 6.9 | 0.95 | 3.6 | | 110 | 7.59 | 1.08 | 4.1 | 110 | 7.59 | 0.9 | 3.4 | | 120 | OFF | 0 | 0 | 120 | 8.28 | 0.87 | 3.3 |
| 130 | 8.97 | 0.85 | 3.2 | | 140 | 9.66 | 0.82 | 3.1 | | 150 | 10.34 | 0.79 | 3 | | 160 | 11.03 | OFF | 0 |
|
|
 |
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
|
 |
 |
|
|
|
|
|
|
|
