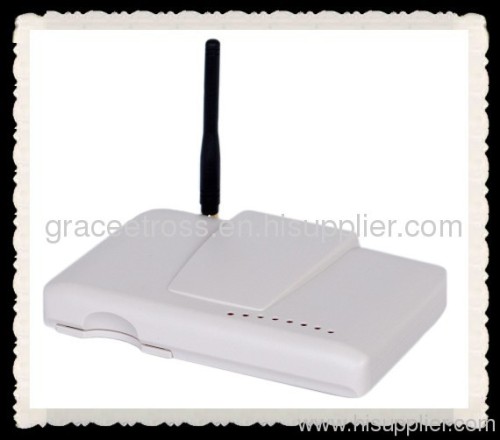

Product name:CDMA FWT Fixed Wireless Terminal/CDMA FCT Fixed Cellular Terminal/CDMA Gateway/CDMA WLL
Brand: ETROSS or OEM
Model: ETROSS-8828C
Frequencies: CDMA 800/1900MHz Ruim/Non-Ruim Support
Brand: ETROSS or OEM
Model: ETROSS-8828C
Frequencies: CDMA 800/1900MHz Ruim/Non-Ruim Support
Specifications:
1.RF receiving (RX): 869 ~894MHz 1930 MHz ~ 1990 MHz
2.RF transmitting (TX): 824 ~849MHz 1850 MHz ~ 1910 MHz
3.Vocoder: 8K QCELP, EVRC
4.Support: Ruim Support Or Non-Ruim support (Optional)
5.Industrial module: Sierra Wireless Module (Qualcomm 3G CDMA)
6.Power Consumption: Static less than 25MA Emission:less than 300MA
7.Ac-Power: Input: 100-240V 50/60Hz ,Output: DC12V 1A
8.Connector of Power: US type or European type (Optional)
9.Antenna Gain: 2.5dbi (Short Plastic Antenna), 3.5dbi (Magnetic Antenna with 3m cable)
10.Backup battery (Optional):
1)Stand-by time: 24 Hours 2)Talk time: 2-6 Hours 3)Charge time: 6 hours
1.RF receiving (RX): 869 ~894MHz 1930 MHz ~ 1990 MHz
2.RF transmitting (TX): 824 ~849MHz 1850 MHz ~ 1910 MHz
3.Vocoder: 8K QCELP, EVRC
4.Support: Ruim Support Or Non-Ruim support (Optional)
5.Industrial module: Sierra Wireless Module (Qualcomm 3G CDMA)
6.Power Consumption: Static less than 25MA Emission:less than 300MA
7.Ac-Power: Input: 100-240V 50/60Hz ,Output: DC12V 1A
8.Connector of Power: US type or European type (Optional)
9.Antenna Gain: 2.5dbi (Short Plastic Antenna), 3.5dbi (Magnetic Antenna with 3m cable)
10.Backup battery (Optional):
1)Stand-by time: 24 Hours 2)Talk time: 2-6 Hours 3)Charge time: 6 hours
Functions
1) Strong signal
2) No noise and clear voice
3) Steady module and reliable design
4) Simple to install/easy to maintain
5) Locking PIN / network (optional)
6) Incoming Caller ID display
7) Ruim Support or Non-Ruim support (optional)
8) Provides reversal polarity signal for metering
9) Compatible to most telephones, PBX and VOIP gateway
10) Provides optimized circuit connecting the exchange device for extension
1) Strong signal
2) No noise and clear voice
3) Steady module and reliable design
4) Simple to install/easy to maintain
5) Locking PIN / network (optional)
6) Incoming Caller ID display
7) Ruim Support or Non-Ruim support (optional)
8) Provides reversal polarity signal for metering
9) Compatible to most telephones, PBX and VOIP gateway
10) Provides optimized circuit connecting the exchange device for extension
Cautions
1. This terminal should not be used at garage, oil storage, and chemical plant or near to any inflammable or explosive substance.
2. This terminal should be avoided in the hospital. It will interfere with medical electronic equipments such as pacemaker and audiphones.
3. If it is found that the terminal is not successful in login onto network, please check whether the SIM card or antenna is well installed.
4. It is blocked to touch the antenna when the Terminal is being used. (Being making calls or receiving calls), otherwise the terminal will be damaged. This kind of damage is beyond the range of warranty.
5. When the terminal is being used, it should be placed where signal is strong enough. In order to ensure good voice quality, the terminal should be far from other electronic equipment.
6. Dont use chemic substance to clean the terminal, but use dry soft cloth to clean it.
7. Don't disassemble the terminal by yourself. If there is any problem, please contract the authorized personnel.
1. This terminal should not be used at garage, oil storage, and chemical plant or near to any inflammable or explosive substance.
2. This terminal should be avoided in the hospital. It will interfere with medical electronic equipments such as pacemaker and audiphones.
3. If it is found that the terminal is not successful in login onto network, please check whether the SIM card or antenna is well installed.
4. It is blocked to touch the antenna when the Terminal is being used. (Being making calls or receiving calls), otherwise the terminal will be damaged. This kind of damage is beyond the range of warranty.
5. When the terminal is being used, it should be placed where signal is strong enough. In order to ensure good voice quality, the terminal should be far from other electronic equipment.
6. Dont use chemic substance to clean the terminal, but use dry soft cloth to clean it.
7. Don't disassemble the terminal by yourself. If there is any problem, please contract the authorized personnel.
Storage:
The terminal that is packed or not could piled up no more than 10 layers.
The terminal should be saved in ventilate and dry place.
Dont knock the terminal to avoid breaking the case.
The terminal that is packed or not could piled up no more than 10 layers.
The terminal should be saved in ventilate and dry place.
Dont knock the terminal to avoid breaking the case.
Operation Circumstance:
Operation temperature: -10c~60C
Storage temperature: -20C~70C
Operation humidity: 45%-95%
Atmosphere pressure: 86-106Kpa
Environment noise: <60DB
Package(Standard carton,20pcs/carton):
Color:White
Fwt weight:250g
Total weight:500g
FWT size:L17 * W11.8 * H3 (cm)
Box size:L27 * W17 * H6.4 (cm)
Color:White
Fwt weight:250g
Total weight:500g
FWT size:L17 * W11.8 * H3 (cm)
Box size:L27 * W17 * H6.4 (cm)
