| Products Feature | ||||||
| High Transform efficiency, fast start; | ||||||
| Pure sine wave output waveform; | ||||||
| Softstart function solar power inverter; | ||||||
| Strong adaptability and stability; | ||||||
| with automatic over current and output Short circuit protection to avoid damage the equipment; | ||||||
| Safe and reliable with built in fuse. | ||||||
| Function details: | ||||||
| Model | PI-4000-121 | PI-4000-241 | PI-4000-481 | PI-4000-122 | PI-4000-242 | PI-4000-482 |
| Rated power | 4000W | 4000W | 4000W | 4000W | 4000W | 4000W |
| Peak power | 8000W | 8000W | 8000W | 8000W | 8000W | 8000W |
| DC input voltage | 12V | 24V | 48V | 12V | 24V | 48V |
| AC output voltage | 110VAC | 220VAC | ||||
| open circuit losses | 12W | 6W | 3W | 11W | 5.5W | 2.8W |
| AC output frequency | 60HZ | 50HZ | ||||
| AC output waveform | pure sine wave | |||||
| waveform distortion | THD<2%(Linear load) | |||||
| Efficiency | >85% | >88% | >90% | >85% | >88% | >90% |
| DC input voltage range | 10.5-15V | 21-30V | 42-60V | 10.5-15V | 21-30V | 42-60V |
| Low Voltage Alarm | 10.5+/-0.3V | 21+/-0.3V | 42+/-0.3V | 10.5+/-0.3V | 21+/-0.3V | 42+/-0.3V |
| Low Voltage Shutdown | 10+/-0.3V | 20+/-0.3V | 40+/-0.3V | 10+/-0.3V | 20+/-0.3V | 40+/-0.3V |
| Over Voltage Protection | 15.5+/-0.5V | 31+/-1V | 62+/-2V | 15.5+/-0.5V | 31+/-1V | 62+/-2V |
| Low Voltage Recovery | 12+/-0.5V | 24+/-1V | 48+/-2V | 12+/-0.5V | 24+/-1V | 48+/-2V |
| Over Voltage Recovery | 14.8V | 29.5V | 59V | 14.8V | 29.5V | 59V |
protective function | Low/Over voltage | LED Red light, automatic recovery | ||||
| Over load | LED Red light, automatic recovery | |||||
| Over temperature | LED Red light, automatic recovery | |||||
| Short circuit | LED Red light, automatic recovery | |||||
| input reverse connection | fuse burn-out | |||||
| Working Temp. | 0-40C | |||||
| Storage Temp. Humidity | (-30C)-70C | |||||
| Dimension | 435*200*146MM | |||||
| Weight | 11kg | |||||
Home >
Electronic & Electrical
>
Power Supplies
>
Inverters & Converters
>

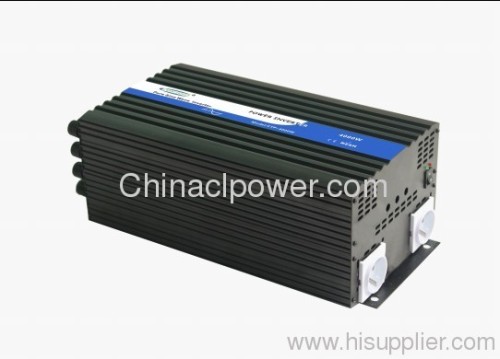

Inverter 4000w,Power inverter,dc to ac inverter(CTP-4000W)
Inverter 4000w,Power inverter,dc to ac inverter(CTP-4000W)
| Price: | 1.0~10.0 USD |
|---|---|
| Trade Term: | FOB |
| Payment Terms: | T/T |
Trade on HiSupplier, Worry Free Guarantee
•Trading safety, secure your money, lower the risk, protect both buyers and suppliers
•HiSupplier is a Chinese multinational company in U.S, it helps to coordination and order landing.
- Product Details
- Company Profile
- Product Reviews
Basic Info.
- Type: DC/AC Inverters
- Output Type: Single
- Output Power: >500W
- Brand Name: CLEAN POWER
- Size: 435*199*146mm
- Weight: 9.7kg
- Input Voltage: DC12V
- Output Voltage: AC220V
- Model No.: CTP-4000W
- Place of Origin: Zhejiang
- Min.Order: 1 Piece/Pieces
- Means of Transport: Air
Supply Capacity
- Production Capacity: 10000
- Packing:BOX packing ,OEM Approved
- Delivery Date: 3-15Days after confirmed
