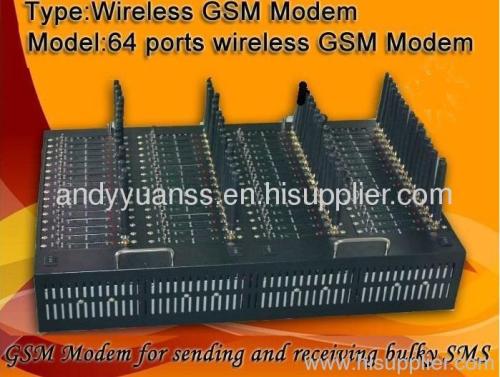

multi port gsm modemmulti port gsm modem
Key Features | ♦ RS232/USB GSM modem pool |
♦ Based on Wavecom industrial modules | |
♦ Q2303A/Q2403A/Q2406B/Q24plus | |
♦ GSM: 900/1800 or 850/900/1800/1900 | |
♦ 64 x SIM card(big/small) slots | |
♦ Wireless access to internet | |
♦ Comply with GSM phase2 standard | |
♦ Cluster send and receive SMS | |
♦♦♦ Maximum transmitting speed 115KBps | |
♦ Input voltage: 100 to 240V ♦ Working temperature: -20 to +60 degrees Celsius ♦ Storage temperature: -25 to +70 degrees Celsius ♦ Double tone multi-frequency function(DTMF) ♦ Size: 55 x 45 x 20cm ♦ Send 600/800/1000/1200 SMS per hour by one port ♦ Weight: 14kg | |
multi port gsm modem | |
Basic Features: | ♦Asynchronous,transparent or non-transparent,to a maximum 14400 bits / s |
♦Baud Rate : 300-115200 bits / s | |
♦ Automatic baud rate: from 2400 to 19200 bits / s | |
♦ Fax support three | |
♦ Switched voice and fax ♦ V.42, V.42bis ♦ GPRS compatible ♦ WAP compatible ♦ SMA Antenna Interface ♦ SIM Card Outlet ♦ Power connector ♦ RS-232, the Mini-DB-9 connector ♦ AT command control ( GSM 07.07 and 07.05) | |
multi port gsm modem | |
Application: | ♦ Large shopping malls, supermarkets |
♦ Professional market, large wholesalers | |
♦ Large hotels,large-scale entertainment | |
♦ Large agencies | |
♦ Transport, logistics industry | |
♦ Large enterprises, and institutions | |
♦ Large hospitals, large bookstore | |
♦ Newspaper, television and radio stations | |
♦ Oil Company ( other chain business model) | |
♦ Government agencies or large township | |
multi port gsm modem | |
Hardware Feature: | ♦ Support dual band:900/1800 MHz or quad-band GSM: 850/900/1800/1900 MHz |
♦ Meet the ETSI GSM 2 + standards | |
♦ Class 4 ( 2W @ 900 MHz) Class 5 ( 1W @ 1800 MHz) | |
♦ 5 -24 VDC power supply (which be directly connected to the nickel- metal hydride or lithium batteries) | |
♦ Operating Temperature: -20 ° C - + 55 ° C | |
♦ Storage temperature: -25 ° C - + 70 ° C | |
♦ Size: standard 1U chassis | |
multi port gsm modem | |
Supported operating systems: | --Windows 7 (Home, Premium, Pro, Ultimate, Enterprise) |
--Windows Vista (Home, Business, Ultimate, Enterprise) | |
--Windows XP (Pro and Home) | |
--Windows Server 2003 (original and R2) --Windows 2000 (Server and Pro) | |
