APPLICATION
The cables are primarly intended for use in the following applications:
BS 5266-1 for emergency lighting of premises
BS 5839-1 for fire detection and fire alarm systems in and around building
BS 5839-8 for voice alarm systems
BS 5839-9 for emergency voice communication systems.
STANDARDS
Basic design to BS 7629-1
FIRE PERFORMANCE
Circuit Integrity
IEC 60331-21; BS 6387 CWZ; DIN VDE 0472-814(FE180);
BS 8434-2 (120mins); BS 5839-1 Clause 26 2e; CEI 20-36/2-1; SS229-1; NBN C 30-004 (cat. F3); NF C32-070-2.3(CR1)
Circuit Integrity with mechanical shock
EN 50200(PH120); CEI 20-36/4-0
Circuit Integrity with mechanical shock & water spray
EN 50200 annex E
System circuit integrity
DIN 4102-12, E30 depending on lay system
Flame Retardance (Single Vertical Wire Test)
EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2;
VDE 0482-332-1 ; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2);
CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*
Reduced Fire Propagation (Vertically-mounted bundled wires & cable test)
EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4
Halogen Free
IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1;
CEI 20-37/2-1 ; BS 6425-1*
No Corrosive Gas Emission
IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2;
CEI 20-37/2-2 ; BS 6425-2*
Minimum Smoke Emission
IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2;
CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2*
No Toxic gases
NES 02-713; NF C 20-454
Note: Asterisk * denotes superseded standard.
VOLTAGE RATING
300/500 V

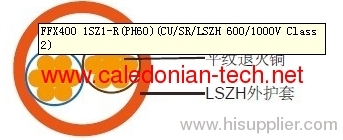

CABLE CONSTRUCTION
Conductors: Plain annealed copper wire, solid according to IEC(EN) 60228 class 1, stranded according to IEC(EN) 60228 class 2.
Insulation: Mica glass fire resistant tape covered by fire resistant silicone rubber compound type EI2 as per BS 7655-1.1.
Cabling: The cores are cabled together in concentric layers with suitable non-hygroscopic fillers.
Overall screen: Aluminum/polyester tape with tinned copper drain wire.
Circuit Protective Conductor: Uninsulated tinned copper conductor of the same section and class as the insulated conductors in the 2-, 3- and 4-core cables. Drain wire of 0.5mm2 tinned copper conductor is provided in cables of more than 4 conductors.
Outer Sheath: Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH compound type SW2-SW4 as per BS 7655-2.6 can be offered.)
COLOUR CODE
Insulation Colour
2 cores blue - brown
3 cores brown - black - grey
4 cores blue - brown - black - grey
(Colour Code Up To 4 Cores In Accordance to HD 308)
7 cores centre: brown 1st layer: brown - black - 4 cores white
12 cores centre: brown - black - white 1st layer: brown - black - 7 cores white
19 cores centre: brown 1st layer: brown - black - 4 cores white
2nd layer: brown - black - 10 cores white
(on request the cores can be one colour only, identified by printed numbers
Sheath Colour: Colour red or white (other colours on request)
Physical AND THERMAL PROPERTIES
Temperature range during operation (fixed state): -30°C – +90°C
Temperature range during installation (mobile state): -20°C – +50°C
Minimum bending radius: 7.5 x Overall Diameter
Electrical PROPERTIES
Dielectric test:
2000 V r.m.s. x 5' (core/core)
Insulation resistance
≥300 MΩ x km (at 20°C)
Short circuit temperature
350°C
CONSTRUCTION PARAMETERS
Cable Code
No. of Core X Cross Section
Nominal
Insulation
Thickness
Nominal
Sheath
Thickness
Nominal
Overall Diameter
Approx.Weight
mm2
mm
mm
mm
kg/km
2 core,
FFX200E 05mSOZ1-U(PH120)
2x1.0
0.6
0.9
7.9
85
FFX200E 05mSOZ1-U(PH120)
2x1.5
0.7
0.9
8.8
105
FFX200E 05mSOZ1-U(PH120)
2x2.5
0.8
1.0
10.2
150
FFX200E 05mSOZ1-R(PH120)
2x1.5
0.7
0.9
9.2
110
FFX200E 05mSOZ1-R(PH120)
2x2.5
0.8
1.0
10.3
155
FFX200E 05mSOZ1-R(PH120)
2x4.0
0.8
1.1
12.2
220
3 core
FFX200E 05mSOZ1-U(PH120)
3x1.0
0.6
0.9
8.4
105
FFX200E 05mSOZ1-U(PH120)
3x1.5
0.7
0.9
9.3
130
FFX200E 05mSOZ1-U(PH120)
3x2.5
0.8
1.0
10.8
190
FFX200E 05mSOZ1-R(PH120)
3x1.5
0.7
0.9
9.4
135
FFX200E 05mSOZ1-R(PH120)
3x2.5
0.8
1.0
10.9
190
FFX200E 05mSOZ1-R(PH120)
3x4.0
0.8
1.1
13.0
280
4 core
FFX200E 05mSOZ1-U(PH120)
4x1.0
0.6
1.0
9.3
125
FFX200E 05mSOZ1-U(PH120)
4x1.5
0.7
1.0
10.3
165
FFX200EE 05mSOZ1-U(PH120)
4x2.5
0.8
1.1
12.0
240
FFX200E 05mSOZ1-R(PH120)
4x1.5
0.7
1.0
10.5
170
FFX200E 05mSOZ1-R(PH120)
4x2.5
0.8
1.1
12.1
250
FFX200E 05mSOZ1-R(PH120)
4x4.0
0.8
1.2
14.4
350
7 core
FFX200E 05mSOZ1-U(PH120)
7x1.0
0.6
1.0
10.5
175
FFX200E 05mSOZ1-U(PH120)
7x1.5
0.7
1.1
12.1
230
12 core
FFX200E 05mSOZ1-U(PH120)
12x1.0
0.6
1.1
14.5
300
FFX200E 05mSOZ1-U(PH120)
12x1.5
0.7
1.2
16.0
380
19 core
FFX200E 05mSOZ1-U(PH120)
19x1.0
0.6
1.2
17.5
470
FFX200E 05mSOZ1-U(PH120)
19x1.5
0.7
1.3
17.5
470
ELECTRICAL PROPERTIES
Conductor Operating Temperature : 90°C
Ambient Temperature : 30°C
Current-Carrying Capacities (Amp)
Conductor cross-
sectional
area
Reference Method 4 (enclosed in an conduit insulated wall etc)
Reference Method 3
(enclosed in conduit on a wall or ceiling, or in trunking)
Reference Method 1 (clipped direct)
Reference Method 11
(on a perforated cable tray), or Reference Method 13 (free air)
one 3-core cable or one 4-core cable 3-phase a.c.
one 2-core cable singlephase a.c. or d.c.
one 3-core cable or one 4-core cable 3-phase a.c.
one 2-core cable singlephase a.c. or d.c.
one 3-core cable or one 4-core cable 3-phase a.c.
one 2-core
cable singlephase
a.c. or
d.c.
one 3-core
cable or one
4-core cable
3-phase a.c.
1
2
3
4
5
6
7
8
mm2
A
A
A
A
A
A
A
1.5
16.5
22
19.5
24
22
26
23
2.5
22
30
26
33
30
36
32
4
30
40
35
45
40
49
42
Voltage Drop (Per Amp Per Meter)
Nominal Cross
Section Area
2-core cable d.c.
2-core cable single-phase a.c
3-core or 4-core cable 3-phase a.c.
1
2
3
4
mm2
mV/A/m
mV/A/m
mV/A/m
1.5
31
31
27
2.5
19
19
16
4
12
12
10
