Company Info
Channel Cailiang (Zhangzhou) Optoelectronics Co., Ltd. is one of the most professional and experienced manufacturers of LED displays. Our company has more than 1,000 workers, with 24 pcs production line for outdoor DIP modules and 8 pcs production line for indoor SMD products. We are professional in the production of outdoor full color led displays, outdoor double color or single color led displays, indoor full color led displays, indoor double color, single color and Semi-outdoor led displays, ... view more
Company Profile
Year Company Registered:
2010-10-01
Annual Sales Amount:
Above US$100 Million
Total No. of Staff:
Above 1000 People
No. of R&D Staff:
5 – 10 People
No. of Engineers:
5 – 10 People
Export Ratio:
41% – 50%
OEM Services Provided:
YES
Payment Terms:
T/T, WU
Business Type:
Manufacturer
Quality Certificate:
CE, ISO9000, RoHS
Main Export Markets:
North America, Western Europe, Eastern Europe, Southeast Asia, Eastern Asia, Mid East, Oceania
Competitive Advantage:
1.High brightness and steady performance of the products 2.Competitive price 3.Withn 7 days delivery
Basic Info.
Type:Graphic
Brand Name:Channel Cailiang
Pixel density:10000nits
Pixel pitch:10mm
Pixel composition:1R
Resolution of module:32*16
Model No.:CL-P10-1W
Place of Origin: Fujian
Min.Order: 10 Piece/Pieces
Means of Transport:Ocean, Air
Supply Capacity
Production Capacity:50000 pieces per day
Packing:carton box or according to the customers' request
Delivery Date:within 7 days

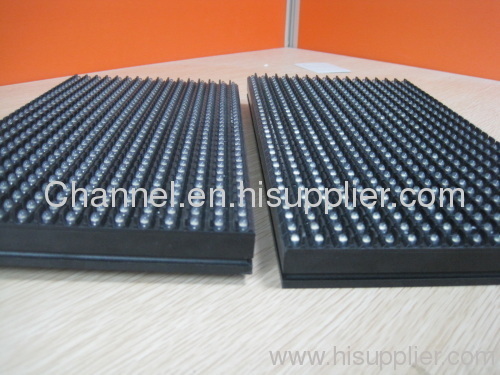

The technicalparameter of P10 Display Module
Number
Item
P10 Single Red Module
1
Pixel pitch
10mm
2
Size ofmodule(wxh)
320mm X160mm
3
Resolution of module (wxh)
32 dots X16 dots
4
Density of pixel
10,000dots/m²
5
Pixel configuration
1R or 1G or 1B or 1W
6
Red wavelength
625±2nm
7
Green wavelength
525±2nm
8
Blue wavelength
470±2nm
9
Colors
W
10
Best viewing distance
10-100m
11
Horizontal viewing angle
120°
12
power consumption
200w/m²
13
Brightness
>2500cd /m2
14
Gray scale
16bits per color
15
Color temperature
5500k
16
Control method
Synchronization & Asynchronization
17
Driving method
1/4scanning
18
Frame frequency
60Hz
19
Refresh frequency
>300Hz
20
Working voltage
AC220V/110V±10%
21
IP grade
IP65
22
Working temperature
-20°C~80°C
23
MTBF
>10000 hours
24
Life span
>100,000 hours
25
Defects rate.
≤0.00001(Led display line standard<0.0001)
Features: 1) With good lightening accordance and no mosaic
2) Can play different formats of image files, flash, WAV/MIDI, video signal from
TV, video signal from video and other equipment
3) Different video frequency can be changed freely at the same time, and the image
can be enlarged and reduced
4) High brightness, and can be adjustable, meets the need of changing requirement
of customer in environment
5) Uses real pixels rather than virtual pixels, better viewing effect.
