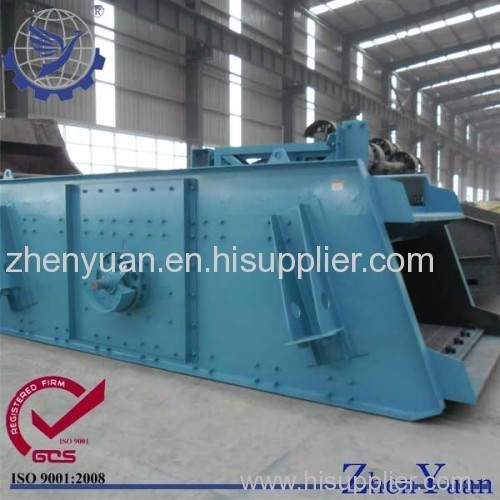

Gold Classification Processing Machine

                          Gold Classification Processing Machine

This series of Gold Classification Processing Machine adopt simple and robust structural design.

• Double eccentric blocks design

• Single, double or triple-deck woven wire cloth,polyurethane screen cloth,slot screen cloth  and perforated screen cloth

• Body and base jointed by compound damping spring

• Fabricated folded construction in either mild or stainless steel

• Complete machine connected by high strength bolt or looping rivet



Excellent Feature



• High availability and operational reliability is the result of a highly developed design and quality standard

• Low noise level with grease lubricated circular drive units which run extremely quiet and are of a stable design with low harmonic oscillation

• Quick changing of screen mats and of the specially developed removable names, to allow lengthwise  tensioning using simple screw connections

• Dust seals are available as a options for all screens

• High acceleration rate to ensure optimum screening



2YK1842 Gold Classification Processing Machine Technical Specifications



Model	Layer	Sieve Opening (mm)	Capacity (t/h)	Motor Power (kw)
2YK1842	2	4, 2	150-450	15



Other Choices

Model	Layer	Sieve Opening (mm)	Capacity  (t/h)	Motor Power  (kw)
YK1236	1	1-100	240	7.5
2YK1236	2
YK1536	1	1-100	300	11
2YK1536	2
YK1836	1	1-100	360	11
2YK1836	2
YK1848	1	1-100	550	15
2YK1848	2
YK2160	1	1-100	750	18.5
2YK2160

Note:  All screening products can be custom-designed to suit your requirements.




Export Market



This series of Gold Classification Processing Machine  was exported to Indonesia, Philippines, Malaysia and

South Africa, etc.

Widest Applications

Except for used in stone, this series of Gold Classification Processing Machine  is also applied in coal, gold,

gravel, crushed stone and pre-crushed materials, etc.




Service for our Gold Classification Processing Machine  :



1. Pre-sale services
Act as a good adviser and assistant of clients; Enable them to returns on their investments.



2. Services during the sale



Respect clients; Devote ourselves to improving the total value



3. After-sale services
Provide considerate services to minimize clients' worries.
