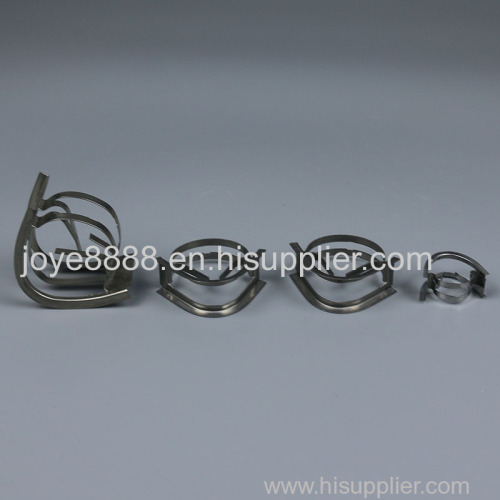

Metal intalox saddle is made of materials like carbon steel, stainless steel or Aluminum alloy, etc.
The product has features such as thin wall, heat resistant, high free volume, high capacity, low resistance, high separation efficiency and so on.
It is especially suitable for rectification towers under vacuum to treat thermosensitive, decomposable, polymerizable or cokable systems, so it is widely used in packing towers in petrochemical industry, chemical fertilizer industry and environmental protection, etc.
Features:
MSR offer a 30% lower pressure drop than Pall Rings but with a lower liquid hold-up. This facilitates shorter packed bed heights. MSR physical shape permits maximum randomness and minimum alignment, Advanced design gives it a high rate of liquid film surface renewal producing a high mass transfer rate, leading to a greater capacity and efficiency compared to other random packings, Large number of contact points for homogenous distribution of liquid and gas, Facilitates shorter packed bed heights.
Spec | Size(mm) | Surface area (m2/m3) | Void Volum (%) | Number (per/m3) | Dry Packing Factor (m-1) |
Φ25 | 25*20*0.6 | 185 | 96 | 81600 | 209 |
Φ50 | 50*40*1.0 | 92.5 | 96 | 12100 | 87.7 |
Φ76 | 76*60*1.2 | 78 | 97 | 2100 | 63.8 |
