Use and capability
GB/T343 - requires the common hot dipped galvanized low carbon stell wire. The products can be used in the national defence, railroad, highway, stockbreeding and agriculture and so on.

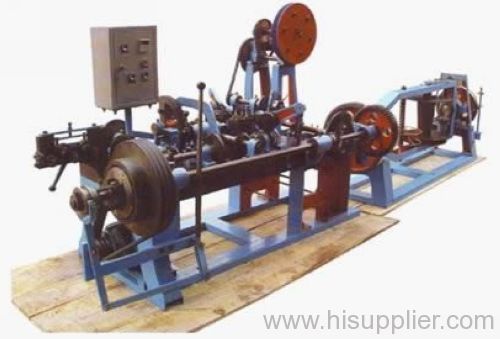

This type barbed wire machine is make up by spool wire and twist wire two parts. The machine can produce all kinds of barbed wires. At present, just this kind of machine can produce the barbed wire mesh.
Technical Parameter
(1) Paramete of double twisted barbed wire machine
(1) Paramete of double twisted barbed wire machine
No | Items | Unit | Parameter | |
1 | electromotor | Modle | Y10012-4 | |
2 | electromotor | KW | 3 | |
3 | Speed of transmission shaft | time/min | 402 | |
4 | Speed of spooling barbed wire | time/min | 470 | |
5 | Speed of pulling rope | mime/min | 134 | |
6 | Speed of round pallet | time/min | 30-255 | |
7 | Size of the main machine | mm | 1900*1300*980 | |
8 | Size of the pull wire machine | mm | 1800*750*750 | |
Note : Special need should discuss by seller and buyer | ||||
(2) The specification of double twisted barbed wire machine
No | Items | Unit | Parameter |
1 | Distance between barbs | cm | 6-15 |
2 | Twist | Number | 4 |
3 | Diameter of chief wire | Mm | 1.8-3.0 |
4 | Diameter of barb wire | mm | 1.6-2.6 |
