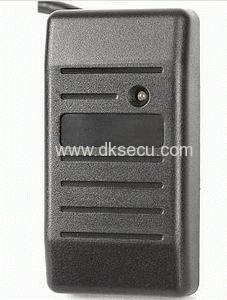

Model No: H-6005
Size: 80*42*12.5(mm)
Power requirements:
5-16VDC at 100mA, A linear regulator is recommended
Interface: Weigand26/34,RS485/RS232
Reader range: 5 - 10 cm
Frequency: 122-128KHz
Operation temperature: -30 C to +60 C
Operationg humidity:
5%-95% relative humidity non-condensing
Audio/Visual Indication:
Green & Red and Buzzer signal output
Response Time: Less than 0.2 seconds
Cable length: 250mm
Weight: 60g
